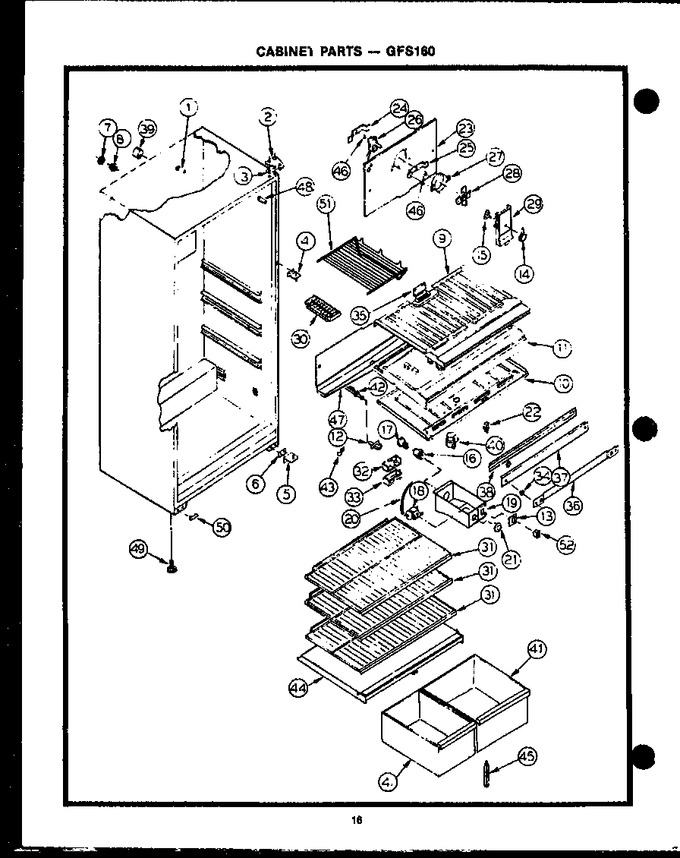

01 - Cabinet Parts
02 - Door Parts
03 - System And Automatic Defrost Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0086525 | Support, Coil Cover |
|
- | |||||
| 2 | Y0086551 | Screw, Hinge |
|
- | |||||
| 2 | 86632D | Plug - Hinge Holes, Gold |
|
- | |||||
| 2 | 86632C | Plug - Hinge Holes, Dark Coppe |
|
- | |||||
| 2 | Y086632F | Plug Lh Hinge Hole, White |
|
- | |||||
| 2 | 86632N | Plug - Hinge Holes, Almond |
|
- | |||||
| 2 | 0086529 | Washer, Nylon |
|
- | |||||
| 2 | Y0086454 | Washer Nylon |
|
- | |||||
| 2 | Y0086485 | Hinge Upper Door |
|
- | |||||
| 2 | 86632V | Plug - Hinge Holes, Avocado |
|
- | |||||
| 3 | Y0086470 | Shim Upper Hinge |
|
- | |||||
| 4 | Y0086554 | Screw, Hinge |
|
- | |||||
| 4 | 86460 | Pin - Center Hinge |
|
- | |||||
| 4 | 86518 | Bracket - Center Hinge |
|
- | |||||
| 5 | 0086545 | Pin, Lower Hinge |
|
- | |||||
| 5 | 0086612 | Screw, Hinge |
|
- | |||||
| 5 | 0086611 | Hinge, Lower Door |
|
- | |||||
| 5 | Y0086604 | Plate, Tapping Lower Hinge |
|
- | |||||
| 6 | 0086515 | Shim, Lower Hinge |
|
- | |||||
| 7 | Y0086567 | Ferrule, Inner |
|
- | |||||
| 8 | Y0086568 | Ferrule, Outer |
|
- | |||||
| 9 | Y0086622 | Bottom, Freezer |
|
- | |||||
| 10 | Y0086621 | Top, Refrigerator |
|
- | |||||
| 10 | 86496 | Screw - |
|
- | |||||
| 11 | Y0086583 | Divider, Compartment |
|
- | |||||
| 12 | Y0086484 | Spout, Drain Tube |
|
- | |||||
| 13 | Y86595 | Label - Control Box |
|
- | |||||
| 14 | Y0086501 | Knob, Damper Control |
|
- | |||||
| 15 | Y0086491 | Clip |
|
- | |||||
| 15 | 0086490 | Damper, Fan Cover |
|
- | |||||
| 16 | Y0086556 | Socket, Light |
|
- | |||||
| 17 | 8009 | Bulb - Light (Replaces: 20478) |
|
Immediately | $ 17.51 | ||||
| 18 | 0086494 | Cold Control |
|
- | |||||
| 18 | Y0086456 | Screw |
|
- | |||||
| 19 | Y0086528 | Screw |
|
- | |||||
| 19 | Y0086565 | Box, Control |
|
- | |||||
| 20 | Y0086458 | Tube Plastic |
|
- | |||||
| 21 | 86571 | Knob - Control |
|
- | |||||
| 22 | Y0086495 | Use C3680304 |
|
- | |||||
| 23 | Y0086543 | Screw |
|
- | |||||
| 23 | 0086584 | Cover, Coil |
|
- | |||||
| 24 | Y0086481 | Bracket, Rear Motor Mounting |
|
- | |||||
| 25 | Y0086482 | Bracket, Front Motor Mounting |
|
- | |||||
| 25 | Y0086528 | Screw |
|
- | |||||
| 26 | 0086563 | Sub 53626, Motor, Blower |
|
- | |||||
| 27 | 86552 | Ring - Fan Orifice |
|
$ 95.76 | |||||
| 27 | Y0086553 | Nut |
|
- | |||||
| 28 | 0086457 | Fan |
|
- | |||||
| 29 | 0086514 | Cover, Fan |
|
- | |||||
| 30 | WP841180A | Tray Ice (Replaces: Y0086467) |
|
Immediately | $ 43.06 | ||||
| 31 | 0086598 | Shelf, Sliding |
|
- | |||||
| 32 | Y0086497 | Deflector, Air |
|
- | |||||
| 33 | 0086483 | Cover, Air Deflector |
|
- | |||||
| 34 | Y0086548 | Washer, Mullion Mounting |
|
- | |||||
| 34 | 0086625 | Spacer, Mullion Mounting |
|
- | |||||
| 35 | Y0086557 | Pad, Foam |
|
- | |||||
| 36 | Y0086546 | Clamp, Mullion Mounting |
|
- | |||||
| 37 | Y086635V | Trim Corner Avocado |
|
- | |||||
| 37 | Y086635F | Trim Corner White |
|
- | |||||
| 37 | Y086635N | Trim Corner Almond |
|
- | |||||
| 37 | Y086635D | Trim Corner Harvest Wheat |
|
- | |||||
| 37 | Y086635C | Trim Corner Coffee |
|
- | |||||
| 38 | 0086588 | Heater, Mullion |
|
- | |||||
| 39 | Y0086452 | Tube In Ferrule |
|
- | |||||
| 40 | Y0086455 | Screw |
|
- | |||||
| 40 | Y0086574 | Timer, Defrost |
|
- | |||||
| 41 | 0086619 | Pan, Storage |
|
- | |||||
| 42 | 0086626 | Sub 53327, Tube Defrost Drain |
|
- | |||||
| 42 | Y0086587 | Ring, Seal |
|
- | |||||
| 43 | Y0086471 | Screw Clamp |
|
- | |||||
| 43 | Y0086453 | Clamp Tube |
|
- | |||||
| 44 | Y0086620 | Cover, Crisper |
|
- | |||||
| 45 | 0086544 | Support, Crisper Cover |
|
- | |||||
| 46 | Y0086469 | Bushing Motor Mounting |
|
- | |||||
| 47 | Y0086624 | Trough, Drain |
|
- | |||||
| 48 | Y086635C | Trim Corner Coffee |
|
- | |||||
| 48 | Y086635N | Trim Corner Almond |
|
- | |||||
| 48 | Y086635V | Trim Corner Avocado |
|
- | |||||
| 48 | Y086635D | Trim Corner Harvest Wheat |
|
- | |||||
| 48 | Y086635F | Trim Corner White |
|
- | |||||
| 49 | Y0086534 | Nut, Anchor |
|
- | |||||
| 49 | Y0086547 | Screw, Leveling |
|
- | |||||
| 50 | Y0086550 | Button Plug |
|
- | |||||
| 51 | 86599 | Shelf - Fz |
|
- | |||||
| 52 | Y0086591 | Switch, Slide |
|
- | |||||
| NI | Y0086573 | Harness, Wiring |
|
- | |||||
| NI | Y0086461 | Button Plug Water Inlet Hole |
|
- | |||||
| NI | Y0086477 | Button Plug |
|
- | |||||
| NI | Y0086505 | Button, Decorative Plug |
|
- | |||||
| NI | Y0086508 | Button, Plug, Liner Holes |
|
- |
