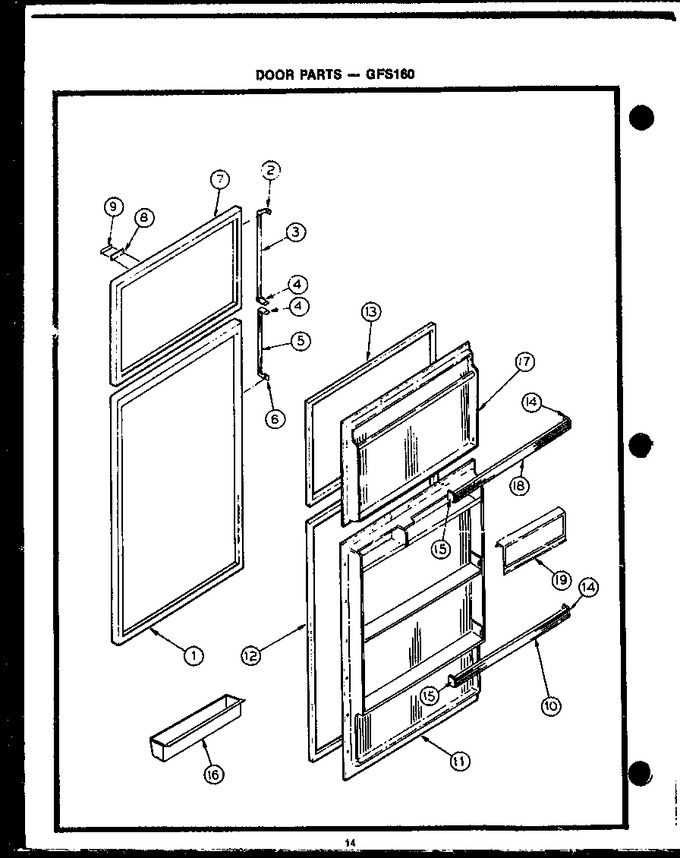

01 - Cabinet Parts


02 - Door Parts


03 - System And Automatic Defrost Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	86637F		Exterior Panel - Ref - Texture		Appelez-nous	-
1	Y086637D		Panel, Refrig Gold		Appelez-nous	-
1	Y086637C		Panel, Refrig Dk Cp		Appelez-nous	-
1	Y086637V		Panel, Refrig Avocado		Appelez-nous	-
1	Y0086507		Hinge, Bearing		Appelez-nous	-
1	86637N		Exterior Panel - Ref - Texture		Appelez-nous	-
1	Y0086464		Ring Seal		Appelez-nous	-
2	0086577		Handle, End		Appelez-nous	-
3	86575		Grip - Handle Fz				$ 97.41
4	Y0086559		End, Handles		Appelez-nous	-
5	Y0086614		Screw, Handles		Appelez-nous	-
5	0086576		Sub 86575, Handle		Appelez-nous	-
6	0086578		End, Handle Bottom		Appelez-nous	-
7	86636F		Exterior Panel - Fz - Textured		Appelez-nous	-
7	Y0086464		Ring Seal		Appelez-nous	-
7	86636N		Exterior Panel - Fz - Textured		Appelez-nous	-
7	Y086636C		Panel, Freezer Dk Cp		Appelez-nous	-
7	Y0086507		Hinge, Bearing		Appelez-nous	-
7	Y086636D		Panel, Freezer Gold		Appelez-nous	-
7	Y086636V		Panel, Freezer Avocado		Appelez-nous	-
8	Y0086615		Frame, Nameplate		Appelez-nous	-
9	Y0086466		Tape		Appelez-nous	-
9	Y0086616		Label, Nameplate		Appelez-nous	-
10	0086475		Sub 86473 Rack, Ref. Dr.		Appelez-nous	-
11	Y0086617		Interior Panel Refrigerator		Appelez-nous	-
11	Y0086488		Screw		Appelez-nous	-
12	0086609		Gasket, Refrigerator Door		Appelez-nous	-
13	0086606		Gasket, Freezer Door		Appelez-nous	-
14	0086594		Support, Rack Rh		Appelez-nous	-
15	0086593		Support, Rack Lh		Appelez-nous	-
16	Y0086564		Container, Egg		Appelez-nous	-
17	Y0086597		Interior Panel Freezer		Appelez-nous	-
17	Y0086488		Screw		Appelez-nous	-
18	0086476		Sub 86473 Rack, Ref. Dr.		Appelez-nous	-
19	0086480		Door, Butter		Appelez-nous	-
NI	86628V		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	86630C		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	86630D		Button - Plug - R.h. Handle Mo		Appelez-nous	-
NI	86629C		Kit - Door Conversion		Appelez-nous	-
NI	Y086628F		Button Plug, White		Appelez-nous	-
NI	Y086629F		Kit, Door Conversion White		Appelez-nous	-
NI	Y086629N		Kit, Door Conversion Almond		Appelez-nous	-
NI	Y086630F		Button Plug, White		Appelez-nous	-
NI	Y086630N		Button Plug, Almond		Appelez-nous	-
NI	86630V		Button - Plug - L.h. Upper Hin		Appelez-nous	-
NI	86629D		Kit - Door Conversion		Appelez-nous	-
NI	86629V		Kit - Door Conversion		Appelez-nous	-
