SELECT A DIAGRAM
New Model Search:

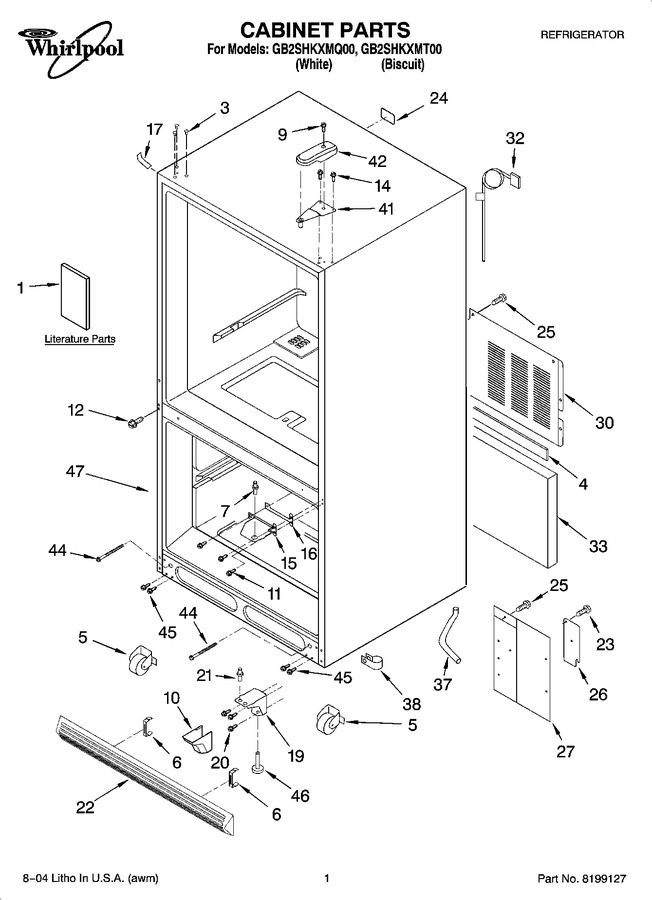

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8171266 | Use & Care Guide |
|
- | |||||
| 1 | 8171173 | Energy Guide |
|
- | |||||
| 1 | 8171264 | Tech Sheet |
|
- | |||||
| 3 | 8170487 | Plug, Button (3) (biscuit) |
|
- | |||||
| 3 | WP2189000 | Plug, Button (3) (white) (Replaces: 4344209) |
|
Immediately | $ 7.77 | ||||
| 4 | 8170924 | Gasket |
|
- | |||||
| 5 | 8170886 | Roller Assembly |
|
- | |||||
| 6 | 8170869 | Clip, Grille |
|
- | |||||
| 7 | WP67006744 | Pin, Center Hinge (Replaces: 4344177) |
|
$ 8.68 | |||||
| 9 | 4343715 | Screw |
|
- | |||||
| 10 | 8170877 | Hinge Cover, Bottom (white) |
|
- | |||||
| 10 | 8170876 | Hinge Cover, Bottom (biscuit) |
|
- | |||||
| 11 | W11573362 | Screw (Replaces: 4344186) |
|
$ 14.72 | |||||
| 12 | WP489349 | Screw (Replaces: 8170373) |
|
Immediately | $ 8.43 | ||||
| 14 | WP489349 | Screw (Replaces: 4344198) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center (Replaces: 8170981) |
|
$ 69.79 | |||||
| 16 | WPM0274057 | Shim, Center Hinge (Replaces: 4344187) |
|
Immediately | $ 8.40 | ||||
| 17 | 67003484 | Cover, Corner (white) (Replaces: 8170860) |
|
$ 21.42 | |||||
| 17 | 8170859 | Cover, Corner (biscuit) |
|
- | |||||
| 19 | 8170864 | Hinge, Bottom |
|
- | |||||
| 20 | 8171202 | Screw |
|
- | |||||
| 21 | 67007018 | Pin, Hinge (bottom) (Replaces: 4344178) |
|
Immediately | $ 8.62 | ||||
| 22 | 8170868 | Grille Assembly (includes Clips) (biscuit) |
|
- | |||||
| 22 | 8170866 | Grille Assembly (includes Clips) (white) |
|
- | |||||
| 23 | 681390 | Screw (Replaces: 4343694) |
|
$ 13.71 | |||||
| 24 | 8170923 | Plug, I/m |
|
- | |||||
| 25 | 4344167 | Screw |
|
- | |||||
| 26 | 8170921 | Plate, Cover |
|
- | |||||
| 27 | 8170920 | Cover, Water Valve |
|
- | |||||
| 30 | 8170910 | Cover, Unit |
|
- | |||||
| 32 | WP67006506 | Power Cord (Replaces: 8170925) |
|
$ 27.74 | |||||
| 33 | 8170879 | Insulation, Sound |
|
- | |||||
| 37 | 8170861 | Tube, Drain |
|
- | |||||
| 38 | 67001067 | Clip, Drain Tube (Replaces: 8170862) |
|
$ 9.66 | |||||
| 41 | WP12566606ED | Hinge, Top (Replaces: 8170974) |
|
Immediately | $ 47.13 | ||||
| 42 | 67001014 | Cover, Hinge (white) (Replaces: 8170977) |
|
$ 22.34 | |||||
| 42 | 8170976 | Cover, Hinge (biscuit) |
|
- | |||||
| 44 | 71003131 | Screw (Replaces: 8170972) |
|
Immediately | $ 7.08 | ||||
| 45 | WP67006715 | Screw (Replaces: 4343782) |
|
$ 7.55 | |||||
| 46 | W11177593 | Foot Break (Replaces: 4344298) |
|
$ 12.18 | |||||
| 47 | N/A | Cabinet (not A Serviceable Part) |
|
- |
