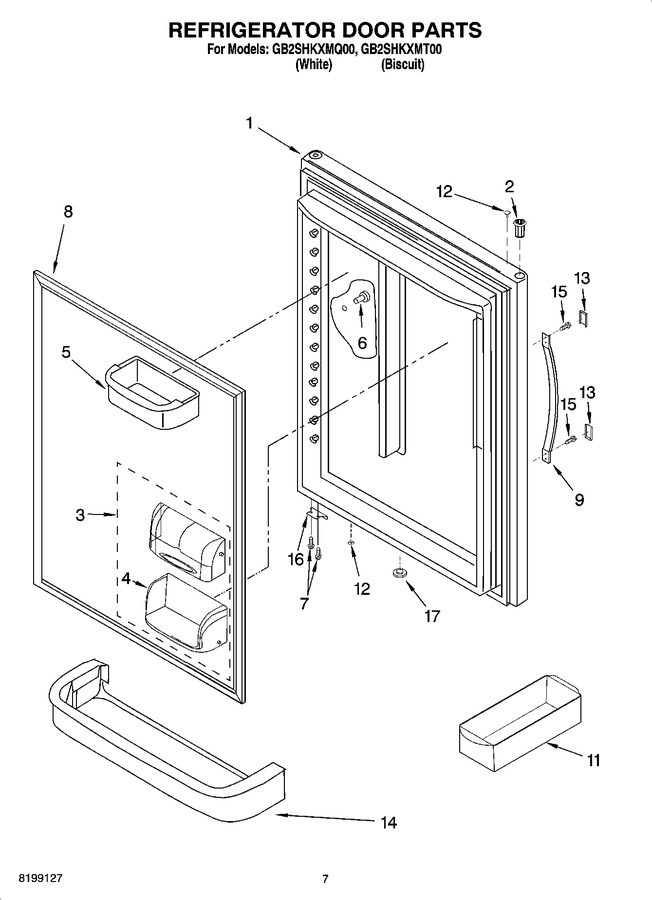

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8171203		Refrigerator Door (includes Insulation) (biscuit)		Appelez-nous	-
1	8171171		Refrigerator Door (includes Insulation) (white)		Appelez-nous	-
2	4344362		Bushing		Appelez-nous	-
3	WP12744905		Dairy Tray Asm   (Replaces: 8171204)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 8170793)			Immediately	$ 88.01
5	WPW10371194		Shelf Bin (medium) (4)   (Replaces: 8171166)			Immediately	$ 77.23
6	WP67001130		Plug, Handle Hole (white)   (Replaces: 4344535)			Immediately	$ 8.21
6	8170495		Plug, Handle Hole (biscuit)		Appelez-nous	-
7	WPW10348409		Screw   (Replaces: 4344333)			Immediately	$ 8.20
8	8171197		Door Gasket, Magnetic		Appelez-nous	-
9	8170777		Door Handle (biscuit)		Appelez-nous	-
9	8170776		Door Handle (white)		Appelez-nous	-
11	W10136387A		Bin, Egg   (Replaces: 8170709)				$ 19.54
12	8170978		Plug, Button		Appelez-nous	-
13	8170786		Trim, Handle (biscuit)		Appelez-nous	-
13	8170752		Trim, Handle (white)		Appelez-nous	-
14	8170795		Door Shelf		Appelez-nous	-
15	R9800670		Screw   (Replaces: 8170499)				$ 10.58
16	12968202W		Stop, Door (white)   (Replaces: 8171205)				$ 69.29
16	67003781		Stop, Door (biscuit)   (Replaces: 8170494)				$ 83.12
17	8170953		Plug, Button		Appelez-nous	-
