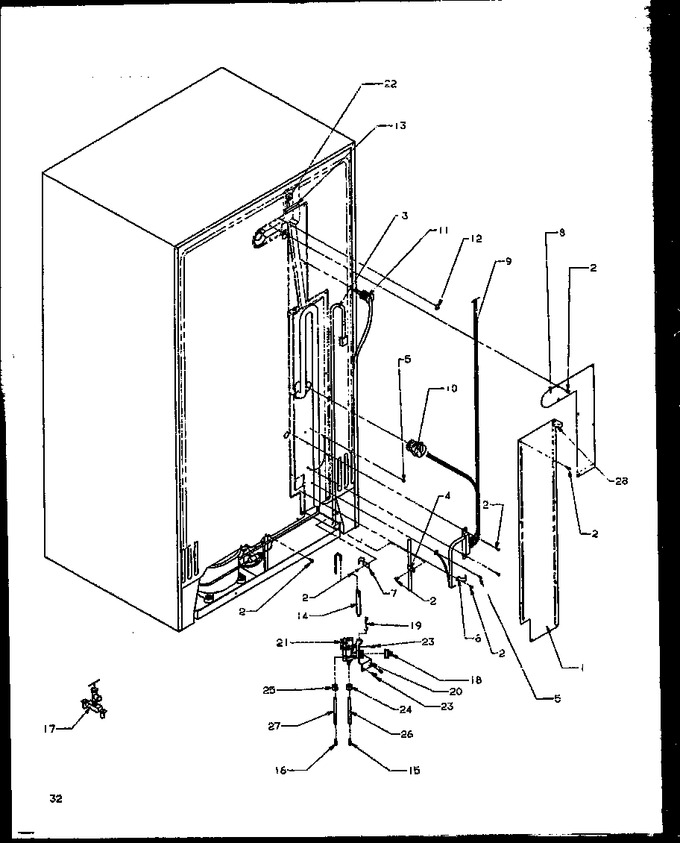

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10178402		Cover, O.c.back		Appelez-nous	-
2	WP489069		Screw   (Replaces: M0220617)			Immediately	$ 8.40
3	B8310505		Cord, Power		Appelez-nous	-
4	M0103903		Clamp, Speed		Appelez-nous	-
5	M0232317		Screw		Appelez-nous	-
6	B5794201		Clamp		Appelez-nous	-
7	10547001		Clip, Drier		Appelez-nous	-
8	10178504		Cover - Wire		Appelez-nous	-
9	10554301		Harness, Cabinet		Appelez-nous	-
10	10178702		Grommet Wire		Appelez-nous	-
11	10178802		Grommet Wire		Appelez-nous	-
12	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
13	A3189336		Gasket, Foam		Appelez-nous	-
14	4007A		Drier   (Replaces: B2150503)			Immediately	$ 15.05
15	A1055101		Spring, Antikink		Appelez-nous	-
16	A1055102		Spring K		Appelez-nous	-
17	A3034801		Saddle Valve		Appelez-nous	-
18	10244901		Coupling		Appelez-nous	-
19	B8374701		Clip, Water Valve		Appelez-nous	-
20	D7701601		Brkt, Water Valve		Appelez-nous	-
21	WPW10245167		Valve, Water   (Replaces: D7742203)				$ 120.73
22	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
23	681390		Screw   (Replaces: M0251015)				$ 13.71
24	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
25	M0753002		Nut, Sleeve		Appelez-nous	-
26	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
27	D7787804		Tank, Coil Water		Appelez-nous	-
28	M0103903		Clamp, Speed		Appelez-nous	-
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
