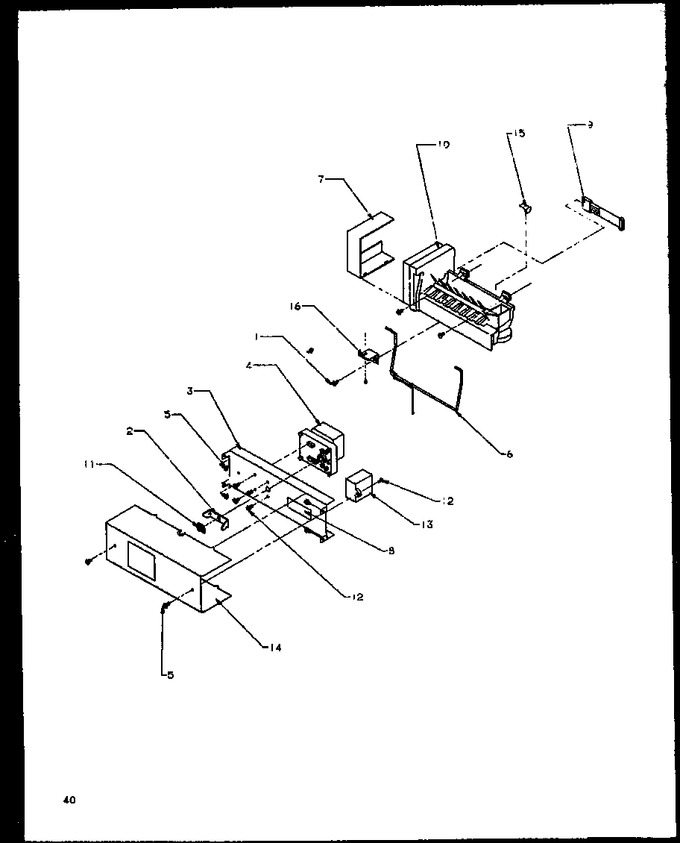

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP90767		Screw, Sm   (Replaces: M0211016)			Immediately	$ 8.25
2	10114901		Driver (ice Maker)				$ 1.61
3	D7749205		Support,auger Motor		Appelez-nous	-
4	10114803		Kit, Auger Motor		Appelez-nous	-
5	67006425		Screw, Sm   (Replaces: M0209616)			Immediately	$ 7.30
6	D7877001		Arm,ice Maker Shut Off		Appelez-nous	-
7	D7820401		Cover Im		Appelez-nous	-
8	A3030305		Gasket-per Ft		Appelez-nous	-
9	D7824601		Harness				$ 57.59
10	D7824706Q		Ice Maker   (Replaces: D7824702)			Immediately	$ 167.35
11	WPM0223101		Nut, Locking   (Replaces: M0223101)				$ 8.06
12	WPW10139210		Screw, Tc   (Replaces: M0226528)				$ 8.03
13	W10613606		Capacitor   (Replaces: C8931605)			Immediately	$ 86.59
14	D7788817		Cover, Auger Mtr		Appelez-nous	-
15	B5720301		Clip		Appelez-nous	-
16	B8391802		Bracket, I/m		Appelez-nous	-
