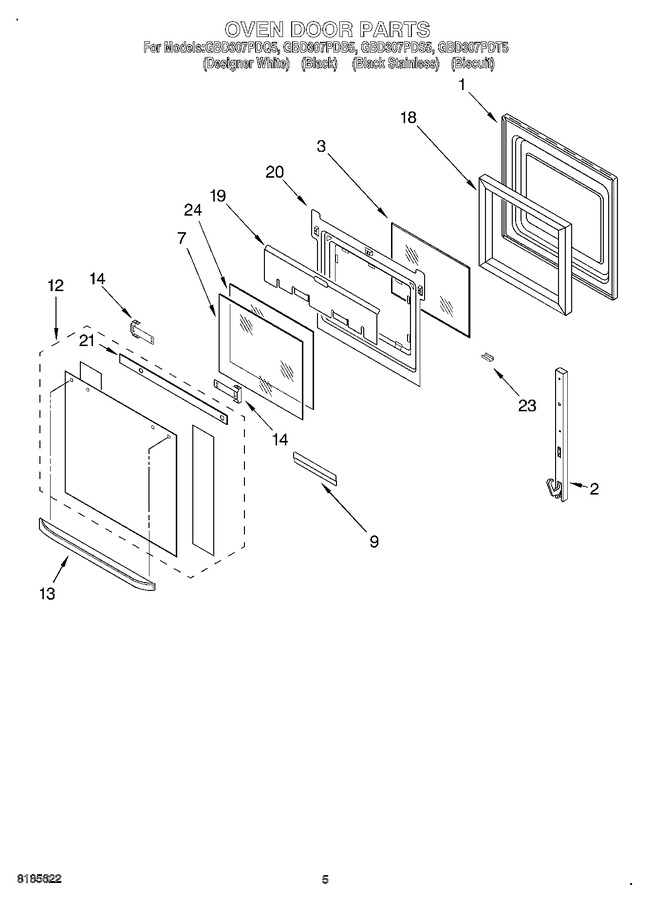

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451719		Door Liner		Appelez-nous	-
2	WP4455525		Hinge, Door (white, Black & Biscuit Models)   (Replaces: 4455525)			Immediately	$ 88.29
2	WP4455526		Hinge, Door (black Stainless Model)   (Replaces: 4455526)			Immediately	$ 90.34
2	WP4449743		Hinge, Door (screw)   (Replaces: 4449743)				$ 7.55
3	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 213.34
7	WP4449263		Glass, Inner   (Replaces: 4449263)			Immediately	$ 167.89
9	4451668		Retainer, Glass		Appelez-nous	-
9	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
12	4452066		Door Glass Assy (white)		Appelez-nous	-
12	WP9759074		Door Glass Assy (black Stainless)   (Replaces: 4452479)				$ 439.14
12	4452859		Door Glass Assy (biscuit)		Appelez-nous	-
12	4452065		Door Glass Assy (black)		Appelez-nous	-
13	4448854		Door Handle (black)				$ 74.07
13	4448855		Door Handle (white)		Appelez-nous	-
13	4452860		Handle, Door (biscuit)		Appelez-nous	-
14	4450813		Bracket, Handle				$ 24.20
14	W10276642		Screw   (Replaces: 4451040)				$ 6.41
18	WP4451722		Insulation, Door   (Replaces: 4451722)				$ 189.77
19	4450362		Shield, Heat		Appelez-nous	-
19	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 7.55
20	4451671		Retainer, Glass		Appelez-nous	-
21	4451674		Seal, Door Top		Appelez-nous	-
23	4450863		Retainer, Clip (black)		Appelez-nous	-
23	4450864		Retainer, Clip (white)		Appelez-nous	-
24	4455257		Glass, Inner				$ 85.45
