SELECT A DIAGRAM

01 - Lower Oven, Literature


02 - Upper Oven


03 - Oven Door


04 - Latch


05 - Internal Oven


06 - Control Panel


07 - Top Venting, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4451896		Latch Assembly				$ 163.41
2	4452224		Solenoid		Appelez-nous	-
3	4452312		Switch, Micro				$ 90.43
4	4451426		Switch, Micro		Appelez-nous	-
5	4451537		Spring, Latch		Appelez-nous	-

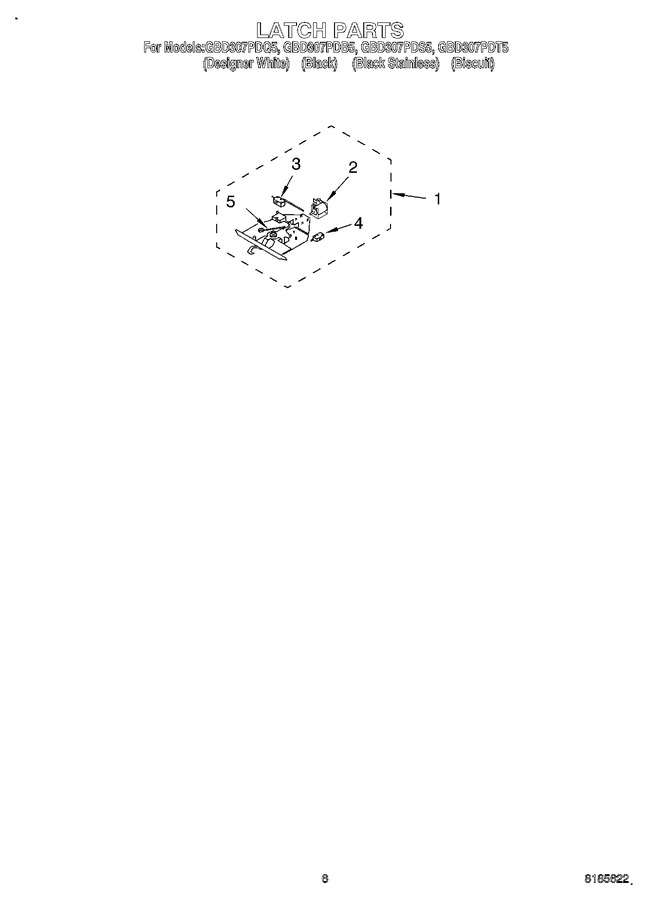

    View Diagram in Separate Window       Print Part List
