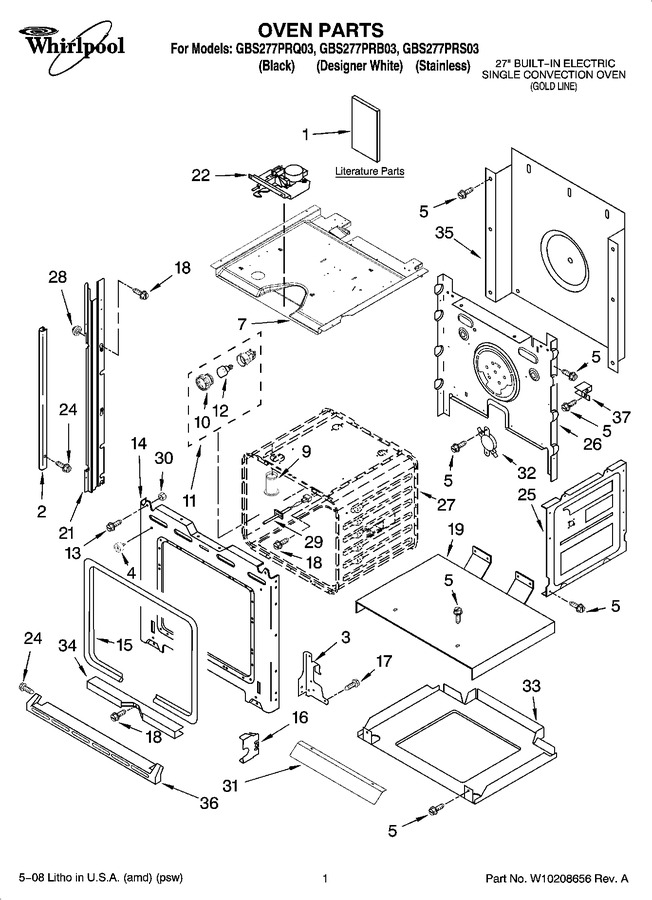

01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts
04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8301758 | Tech Sheet |
|
- | |||||
| 1 | W10162172 | Owners Manual (french) |
|
- | |||||
| 1 | 8304571 | Installation/ Undercounter |
|
- | |||||
| 1 | 8303648 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | 8301928 | Installation/ Micro Trim Kit |
|
- | |||||
| 1 | W10162171 | Owners Manual (english) |
|
- | |||||
| 2 | W10166950 | Trim, Side Right (stainless) |
|
- | |||||
| 2 | W10136094 | Trim, Side Right (white) |
|
- | |||||
| 2 | W10136093 | Trim, Side Right (black) |
|
- | |||||
| 2 | W10166951 | Trim, Side Left (stainless) |
|
- | |||||
| 2 | W10136095 | Trim, Side Left (white) |
|
$ 35.87 | |||||
| 2 | W10136092 | Trim, Side Left (black) |
|
- | |||||
| 3 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 127.70 | ||||
| 3 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 131.74 | ||||
| 4 | W10105790 | Bumper, Door |
|
$ 7.41 | |||||
| 5 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 7.55 | ||||
| 7 | 4455864 | Top, Chassis |
|
$ 22.85 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 122.46 | |||||
| 10 | W10067870 | Lens, Light |
|
$ 65.50 | |||||
| 11 | WPW10734065 | Assembly, Light (Replaces: W10009930) |
|
$ 101.46 | |||||
| 12 | WP4173175 | Bulb, Light (Replaces: 4452166) |
|
Immediately | $ 53.62 | ||||
| 13 | WP4449040 | Screw (Replaces: 4449040) |
|
$ 6.78 | |||||
| 14 | W10130370 | Frame, Front |
|
$ 79.39 | |||||
| 15 | WP4455381 | Gasket, Door (Replaces: 4455381) |
|
$ 185.61 | |||||
| 16 | 4452152 | Bracket, Mounting |
|
$ 35.18 | |||||
| 17 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 7.55 | |||||
| 18 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 19 | 4451477 | Support, Insulation |
|
- | |||||
| 21 | 8303116 | Rail, Side (left) |
|
- | |||||
| 21 | 8303115 | Rail, Side (right) |
|
$ 164.47 | |||||
| 22 | WP9760889 | Latch, Motorized (Replaces: 9760888) |
|
Immediately | $ 345.08 | ||||
| 24 | WP3400805 | Screw (zinc) (Replaces: 3400805) |
|
$ 7.55 | |||||
| 24 | WP3400832 | Screw (black) (Replaces: 3400832) |
|
Immediately | $ 8.18 | ||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 150.69 | |||||
| 26 | W10161109 | Back, Chassis |
|
- | |||||
| 28 | WP4448444 | Grommet (Replaces: 4448444) |
|
$ 7.85 | |||||
| 29 | WPW10131825 | Sensor (Replaces: W10131825) |
|
Immediately | $ 95.83 | ||||
| 30 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 8.78 | |||||
| 31 | 9760676 | Deflector, Vent |
|
- | |||||
| 32 | WP9759243 | Switch, Safety Thermostat (Replaces: 9759243) |
|
Immediately | $ 55.44 | ||||
| 33 | 4455529 | Base, Chassis |
|
- | |||||
| 34 | WP4448933 | Retainer, Gasket (Replaces: 4448933) |
|
$ 9.30 | |||||
| 35 | WP4451747 | Cover-back (Replaces: 4451747) |
|
$ 150.07 | |||||
| 36 | 8303579 | Trim, Bottom (black) |
|
- | |||||
| 36 | 8303580 | Trim, Bottom (white) |
|
- | |||||
| 36 | 8303578 | Trim, Bottom (stainless) |
|
- | |||||
| 37 | 4449845 | Support, Bracket |
|
- | |||||
| 4450364 | Insulation, Back |
|
- | ||||||
| 4449315 | Insulation, Wrap |
|
$ 64.81 |
