SELECT A DIAGRAM
01 - Oven Parts
02 - Control Panel Parts
03 - Oven Door Parts

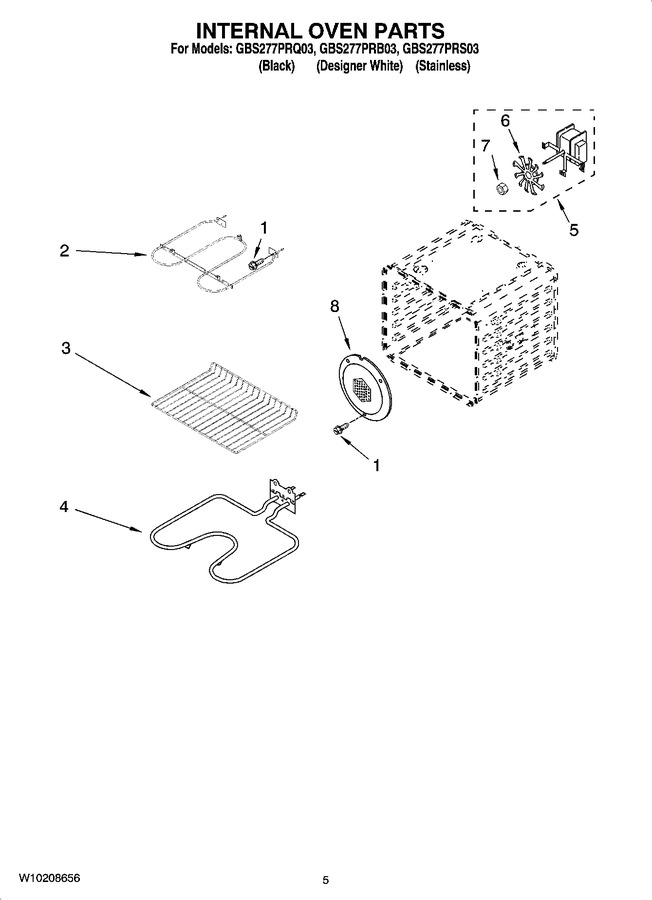

04 - Internal Oven Parts
05 - Top Venting Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 8.16 | |||||
| 2 | WP9760771 | Element, Broil (Replaces: 9760771) |
|
Immediately | $ 116.41 | ||||
| 3 | 4448715 | Rack, Oven |
|
$ 80.66 | |||||
| 4 | WPW10207397 | Element, Bake (Replaces: 9760766) |
|
Immediately | $ 77.15 | ||||
| 5 | W10794022 | Motor, Convection Fan (Replaces: W10116228) |
|
Immediately | $ 214.63 | ||||
| 6 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.91 | ||||
| 7 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 21.78 | |||||
| 8 | WPW10160821 | Cover, Fan (Replaces: 4448988) |
|
$ 285.59 |
