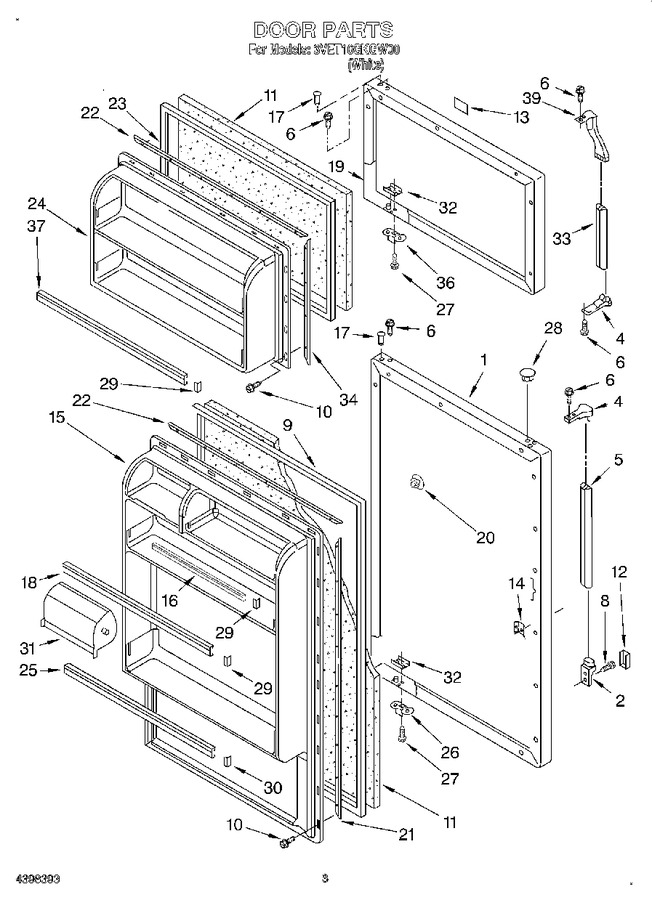

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2201546 | Refrigerator Door Panel (also Order Item 11) |
|
- | |||||
| 2 | 819342 | End Cap (Replaces: 2183141) |
|
Immediately | $ 47.96 | ||||
| 4 | 819342 | End Cap, Handle (Replaces: 2191877) |
|
Immediately | $ 47.96 | ||||
| 5 | WP2162555 | Handle, Center (Replaces: 2148035) |
|
Immediately | $ 150.11 | ||||
| 6 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.94 | |||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 9 | 2188448A | Door Gasket, Magnetic (Replaces: 2191888) |
|
$ 154.65 | |||||
| 10 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 11 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 12 | 9791769 | Cover, Screw |
|
$ 5.70 | |||||
| 13 | 2157907 | Nameplate |
|
$ 6.56 | |||||
| 14 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.50 | |||||
| 15 | 2173725 | Panel, Interior Door (refrigerator) |
|
- | |||||
| 16 | 2192654 | Trim, Door Shelf (upper) |
|
- | |||||
| 17 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 18 | 2192655 | Trim, Door (middle) |
|
- | |||||
| 19 | 2201544 | Freezer Door Panel (also Order Item 11) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 21 | 1122551 | Retainer, Gasket |
|
- | |||||
| 22 | 1120614 | Retainer, Gasket |
|
$ 27.51 | |||||
| 23 | 2188462A | Door Gasket, Magnetic (Replaces: 2191889) |
|
Immediately | $ 114.77 | ||||
| 24 | 9790358 | Interior Door Panel (freezer) |
|
- | |||||
| 25 | WP2266738 | Trim, Door Shelf (lower) (Replaces: 2192656) |
|
$ 111.69 | |||||
| 26 | 944036 | Bracket, Door Stop |
|
- | |||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 7.80 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | 2174801 | Compartment Door |
|
- | |||||
| 32 | 2183198 | Tap Plate |
|
- | |||||
| 33 | WP2162555 | Handle, F.c. (Replaces: 2148068) |
|
Immediately | $ 150.11 | ||||
| 34 | 1122553 | Retainer, Gasket |
|
- | |||||
| 36 | 944035 | Stop, Door |
|
- | |||||
| 37 | WP2266727 | Trim-door (2) (Replaces: 2192653) |
|
Immediately | $ 92.50 | ||||
| 39 | 819342 | Handle End (Replaces: 2191876) |
|
Immediately | $ 47.96 |
