SELECT A DIAGRAM
01 - Cabinet, Literature
02 - Door
03 - Liner, Optional
04 - Unit
05 - Shelf
New Model Search:

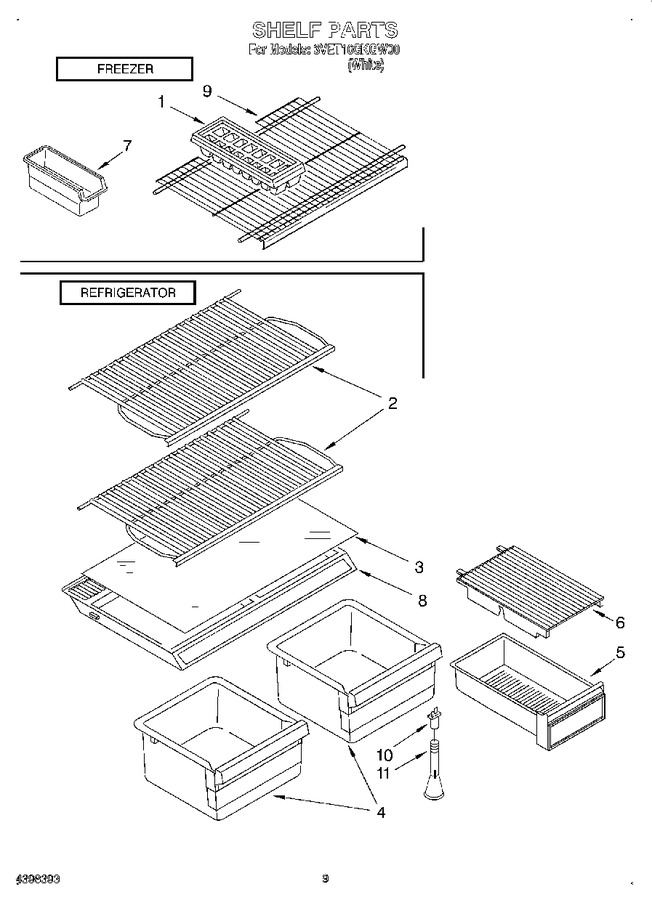

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP841180A | Ice Tray (2) (Replaces: 841180) |
|
Immediately | $ 45.56 | ||||
| 2 | WP2192515 | Shelf (3) (Replaces: 2192515) |
|
$ 122.33 | |||||
| 3 | WP2210047 | Glass Cover (Replaces: 2194439) |
|
Immediately | $ 206.97 | ||||
| 4 | WP2164186 | Pan, Crisper (Replaces: 2164186) |
|
Immediately | $ 129.49 | ||||
| 5 | 2183273 | Pan, Meat |
|
$ 61.29 | |||||
| 6 | 9790379 | Cover, Pan |
|
$ 77.22 | |||||
| 7 | WP982704 | Container (Replaces: 1116917) |
|
$ 31.00 | |||||
| 8 | WP2192250 | Cover, Crisper (Replaces: 2192250) |
|
Immediately | $ 184.03 | ||||
| 9 | WP2192514 | Shelf, Freezer (Replaces: 2192514) |
|
Immediately | $ 96.04 | ||||
| 10 | 9791824 | Support, Crisper |
|
$ 44.69 | |||||
| 11 | 836410 | Post, Crisper |
|
$ 5.84 |
