SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Door


03 - Liner, Optional


04 - Unit


05 - Shelf


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	939962		Rivet-plastic				$ 11.83
3	2183061		Cover, Air Diffuser				$ 36.62
4	WP2166867		Timer, Defrost   (Replaces: 2162054)				$ 178.79
5	WP489174		Screw   (Replaces: 489174)				$ 6.95
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
7	2176927		Wire Assembly (control Box)		Appelez-nous	-
8	4387478		Socket, Light   (Replaces: 2162085)			Immediately	$ 110.16
9	WPW10180172		Fan Support Bracket   (Replaces: 2197404)				$ 40.27
10	2197405		Fan Mounting Bracket				$ 30.23
11	2169141		Fan Blade		Appelez-nous	-
12	2215213		Control Box   (Replaces: 2202020)				$ 110.52
13	WPW10511937		Thermostat   (Replaces: 2201754)			Immediately	$ 180.41
14	WP489399		Screw   (Replaces: 489399)				$ 6.95
15	WP2196003		Thermostat Tube Barrier   (Replaces: 1118680)				$ 7.95
16	2201205		Cover, Evaporator		Appelez-nous	-
17	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
18	W11034434		Light Shield   (Replaces: 9791702)			Immediately	$ 103.73
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23
20	WP489442		Screw   (Replaces: 489438)			Immediately	$ 10.94
21	2192097		Wiring, Freezer		Appelez-nous	-
22	WP2202885		Control Knob   (Replaces: 2202885)				$ 26.38
23	9790408		Air Tower				$ 85.98
24	2197052		Hood & Foil Assembly		Appelez-nous	-
25	2174798		Freezer Floor				$ 70.51
26	2197030		Air Diffuser		Appelez-nous	-
27	WP2217784		Cover, Hole   (Replaces: 2197434)				$ 44.97
28	WP2264462		Grommet-motor   (Replaces: 2197380)			Immediately	$ 43.97
29	WP489478		Screw   (Replaces: 489478)				$ 7.75
30	WP2201215		Evaporator Fan Motor   (Replaces: 2201215)				$ 213.10
31	489115		Fastener-snap In				$ 5.51
32	2165773		Retainer		Appelez-nous	-
33	WP2175210		Shroud   (Replaces: 2175210)				$ 82.61
34	WP489474		Screw   (Replaces: 489474)			Immediately	$ 7.97
35	2197416		Deflector, Air				$ 80.24
36	W11729596		Eckmf-94   (Replaces: 2155469)			Immediately	$ 150.98
36	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
36	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
36	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
36	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
36	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
36	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
36	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
36	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
36	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
36	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
36	833938		Kit, Terminal Connector				$ 8.07
36	1117510		Torx Key				$ 5.84
36	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.72
36	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
36	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
36	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
36	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
36	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
36	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
36	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
36	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
36	350942		Primer White (13 Oz. Spray Can)				$ 89.66

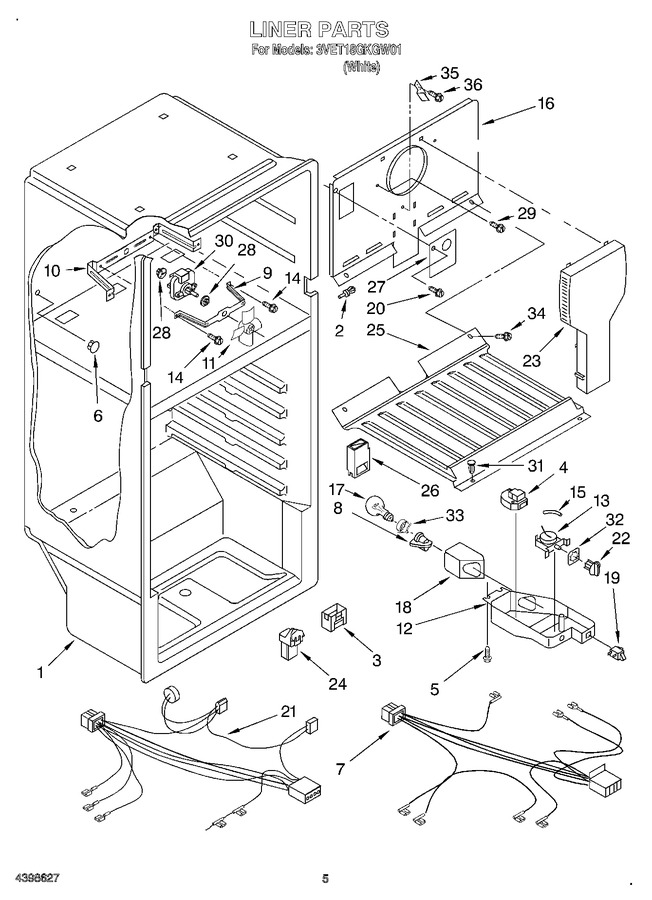

    View Diagram in Separate Window       Print Part List
