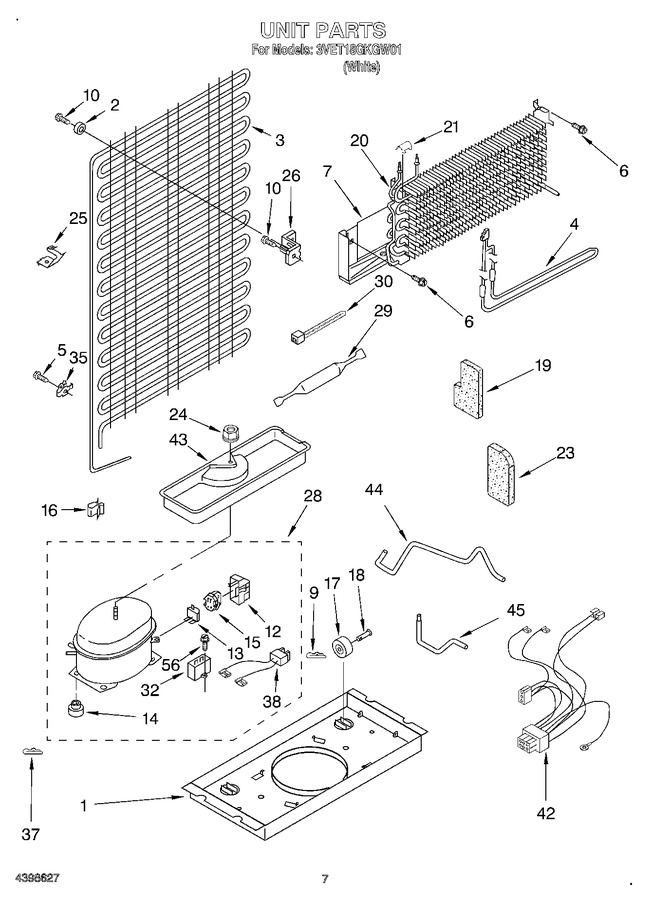

04 - Unit
05 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2175260 | Support Plate, Compressor |
|
- | |||||
| 2 | 944772 | Bumper |
|
- | |||||
| 3 | WP2252730 | Condenser (Replaces: 2192693) |
|
$ 287.29 | |||||
| 4 | WP2167357 | Heater, Defrost (Replaces: 2167357) |
|
$ 165.14 | |||||
| 5 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 6 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 7 | 2201515 | Heat Shield |
|
- | |||||
| 9 | WP2174706 | Clip-roller (Replaces: 2174706) |
|
$ 11.53 | |||||
| 10 | WP488163 | Screw, (Replaces: 488725) |
|
$ 7.92 | |||||
| 12 | WP2162358 | Cover (Replaces: 2162358) |
|
$ 95.29 | |||||
| 13 | 2169411 | Overload |
|
- | |||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2163786) |
|
$ 8.36 | |||||
| 14 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 15 | WP2262184 | Start Relay (Replaces: 2154755) |
|
$ 123.46 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 19.12 | ||||
| 19 | 2166053 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2197162) |
|
Immediately | $ 333.22 | ||||
| 21 | 9791833 | Clip, Evaporator Tube |
|
- | |||||
| 23 | 2166054 | Wedge-evaporator |
|
- | |||||
| 24 | 285002 | Hex Nut (Replaces: 489153) |
|
$ 12.85 | |||||
| 25 | 4386951 | Clip, Condenser Mounting (Replaces: 2172892) |
|
- | |||||
| 26 | 944791 | Bracket, Condenser |
|
- | |||||
| 28 | 4387782 | Compressor (includes Items 12, 13, 14, 15, 32, 38 & 56) (also Order (Replaces: 2183462) |
|
- | |||||
| 28 | 876765 | Tube Kit |
|
Immediately | $ 90.65 | ||||
| 28 | 482801 | Installation Kit |
|
$ 119.50 | |||||
| 29 | W10843121 | Drier (Replaces: 2201796) |
|
Immediately | $ 57.13 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2155774) |
|
$ 8.30 | |||||
| 32 | WP2201147 | Capacitor (Replaces: 2201147) |
|
$ 135.42 | |||||
| 35 | 1105406 | Clip, Tube |
|
- | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 38 | 2174998 | Wire Assembly |
|
- | |||||
| 42 | 2167479 | Wire Assy. Unit |
|
- | |||||
| 43 | 2201801 | Tray, Evaporator |
|
$ 78.52 | |||||
| 44 | 2174791 | Tube, Discharge |
|
- | |||||
| 45 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 30.46 | |||||
| 56 | 482278 | Start Kit |
|
- | |||||
| 56 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 56 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 56 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 95.92 | ||||
| 56 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 56 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 56 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 56 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 56 | 978028 | Valve, Access (1/2) |
|
- |
