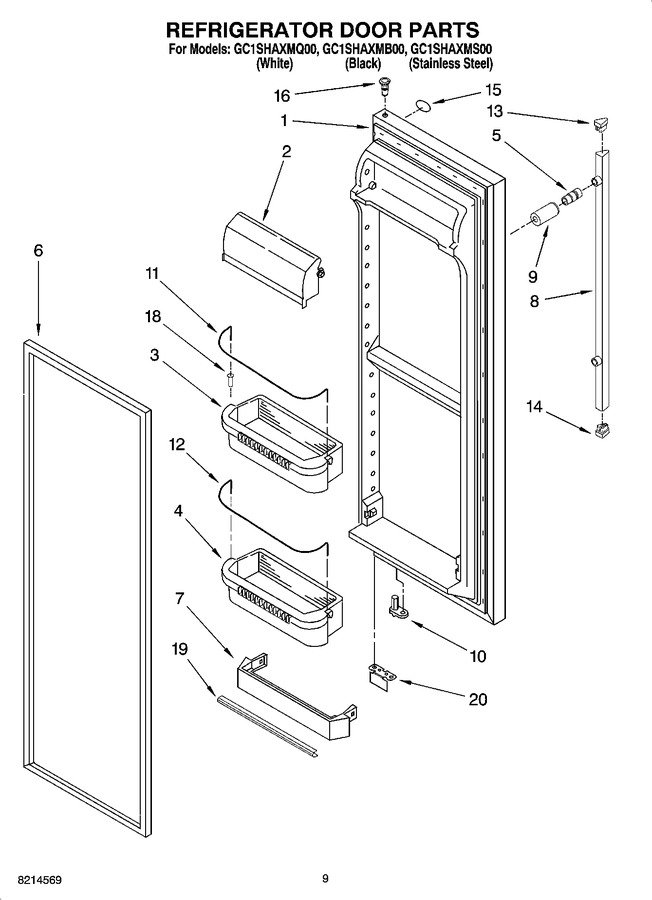

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206770		Refrigerator Door (includes Item 6) (white)		Appelez-nous	-
1	8206685		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
1	8206731		Refrigerator Door (includes Item 6) (stainless Steel)		Appelez-nous	-
2	8206700		Compartment Door		Appelez-nous	-
3	8206794		Shelf Bin (upper)		Appelez-nous	-
4	8206743		Shelf Bin (lower)		Appelez-nous	-
5	8206715		Support, Inner Handle		Appelez-nous	-
6	8206712		Door Gasket, Magnetic (black)		Appelez-nous	-
6	8206709		Door Gasket, Magnetic (white)		Appelez-nous	-
7	8206701		Shelf Bin		Appelez-nous	-
8	8206710		Handle (white)		Appelez-nous	-
8	8206711		Handle (black)		Appelez-nous	-
9	8206714		Support, Handle (black)		Appelez-nous	-
9	8206713		Support, Handle (white)		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	8206704		Retainer, Bottle		Appelez-nous	-
12	8206705		Retainer, Bottle (lower)		Appelez-nous	-
13	8206716		Plug, Handle (top)		Appelez-nous	-
14	8206717		Plug, Handle (bottom)		Appelez-nous	-
15	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
16	8206693		Thimble-top		Appelez-nous	-
18	8206707		Bushing		Appelez-nous	-
19	8206708		Trim		Appelez-nous	-
20	8206748		Bracket, Door Stop (black)		Appelez-nous	-
20	8206722		Bracket, Door Stop (chrome)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
