SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

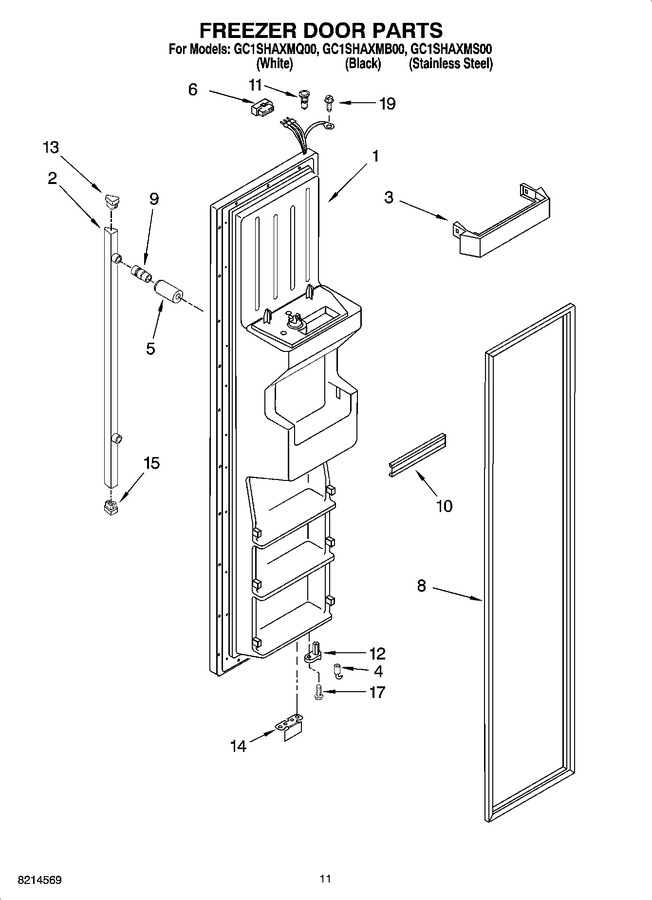

1	8206732		Freezer Door (includes 6,8 Note: Doesn`t Include Dispenser Assy See Page 13 To Order Parts) (black)		Appelez-nous	-
1	8206753		Freezer Door (includes 6,8 Note: Doesn`t Include Dispenser Assy See Page 13 To Order Parts) (ss)		Appelez-nous	-
1	8206718		Freezer Door (includes 6,8 Note: Doesn`t Include Dispenser Assy See Page 13 To Order Parts) (white)		Appelez-nous	-
2	8206710		Handle (white)		Appelez-nous	-
2	8206711		Handle (black)		Appelez-nous	-
3	8206721		Shelf Bin		Appelez-nous	-
4	WP4373559		Fitting   (Replaces: 4373559)				$ 77.35
5	8206715		Support, Inner Handle		Appelez-nous	-
6	8206724		Connector Kit		Appelez-nous	-
8	8206719		Door Gasket, Magnetic (white)		Appelez-nous	-
8	8206720		Door Gasket, Magnetic (black)		Appelez-nous	-
9	8206714		Support, Handle (black)		Appelez-nous	-
9	8206713		Support, Handle (white)		Appelez-nous	-
10	WPW10307490		Trim, Door Shelf   (Replaces: 2198630)			Immediately	$ 23.11
11	8206723		Thimble-top		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	8206716		Plug, Handle		Appelez-nous	-
14	8206748		Bracket, Door Stop (black)		Appelez-nous	-
14	8206722		Bracket, Door Stop (chrome)		Appelez-nous	-
15	8206717		Plug, Handle (bottom)		Appelez-nous	-
17	WP3400906		Screw   (Replaces: 3400906)				$ 7.84
19	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
