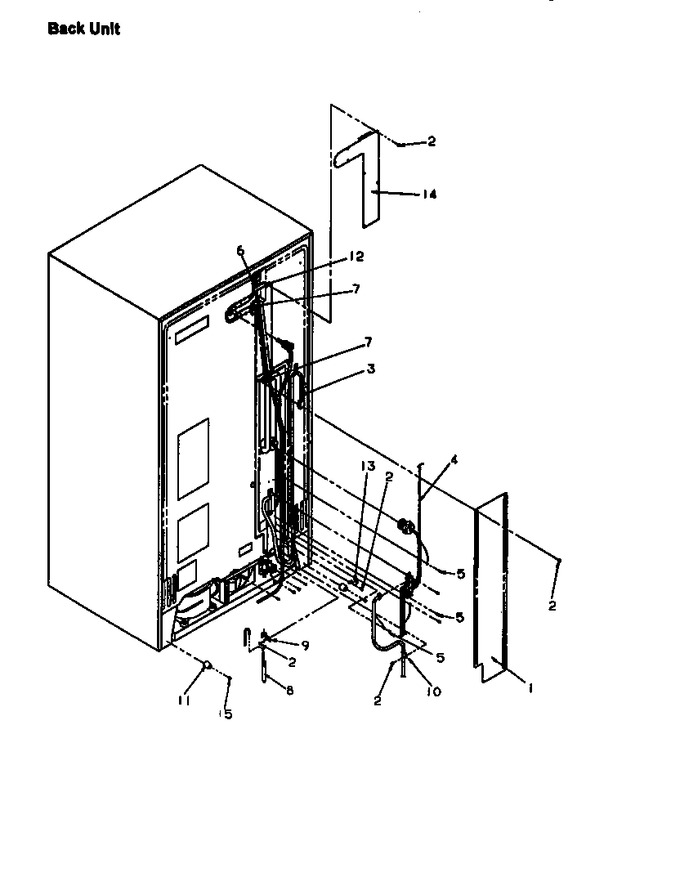

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	A1055101		Spring, Antikink		Appelez-nous	-
2	A1055105		Spring, Anti Kink		Appelez-nous	-
3	WP489474		Screw   (Replaces: M0220634)			Immediately	$ 8.55
4	NC2098LF		Coupling   (Replaces: 10244903)				$ 24.74
5	10798001		Clip, Water Valve		Appelez-nous	-
6	10496301		Brkt, Water Val.		Appelez-nous	-
7	WPW10245167		Valve, Water   (Replaces: D7742204)				$ 120.73
8	10178402		Cover, O.c.back		Appelez-nous	-
9	WPM0114003		Clip, Speed   (Replaces: M0114003)				$ 11.60
10	M0227217		Screw, Sm		Appelez-nous	-
11	681390		Screw   (Replaces: M0251015)				$ 13.71
12	WP627018		Nut, Sleeve   (Replaces: M0753001)				$ 11.51
13	M0753003		Nut, Sleeve		Appelez-nous	-
14	WPB5705307		Tube, Plastic , 68``   (Replaces: B5705321)				$ 13.05
15	10916505		Cord-power		Appelez-nous	-
16	10988501		Kit, Water Tank		Appelez-nous	-
17	C8960601		Foot, Outer Case		Appelez-nous	-
18	10178504		Cover - Wire		Appelez-nous	-
19	WPM0104106		Clip,cord   (Replaces: M0104101)				$ 8.17
20	10547001		Clip, Drier		Appelez-nous	-
21	A3189336		Gasket, Foam		Appelez-nous	-
22	10982901		Harness, Cabinet		Appelez-nous	-
23	B5794201		Clamp		Appelez-nous	-
24	M0232317		Screw		Appelez-nous	-
25	M0103904		Clamp, Speed		Appelez-nous	-
26	WPB2150504		Drier   (Replaces: B2150504)				$ 136.98
NI	WPA3223101		Insert, Plastic Tube   (Replaces: A3223101)			Immediately	$ 8.21
