SELECT A DIAGRAM

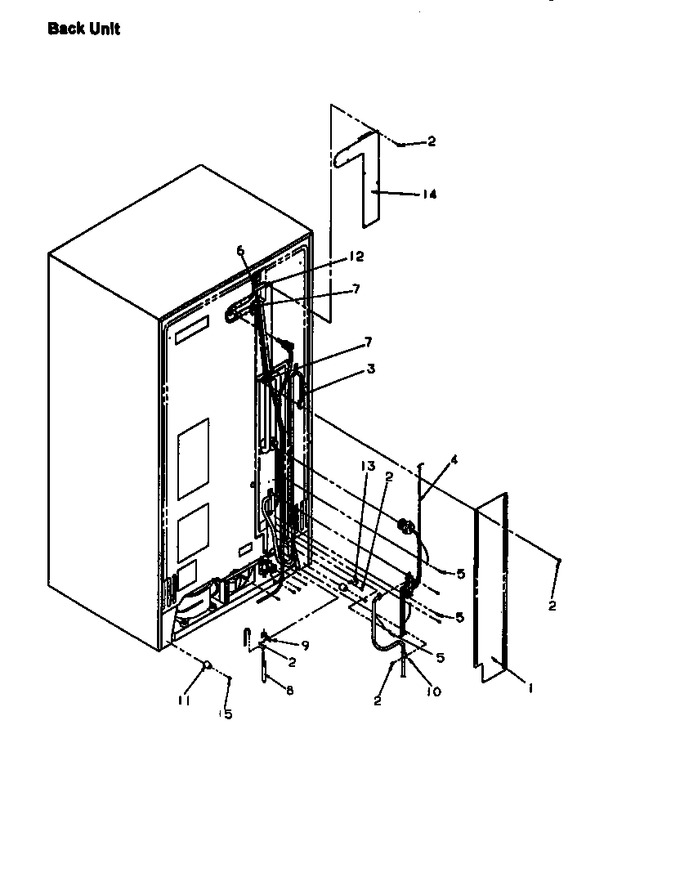

01 - Cabinet Back


02 - Crushed Ice Bucket


03 - Drain And Rollers


04 - Evap And Air Handling


05 - Fz Door


06 - Fz Door Hinge And Trim Parts


07 - Fz Shelving And Ref Light


08 - Ice And Water Cavity


09 - Ice And Water Cavity


10 - Ice Maker


11 - Machine Compartment


12 - Ref Door


13 - Ref Door Hinge And Trim Parts


14 - Ref Shelving And Drawers


15 - Ref Shelving And Drawers


16 - Ref/fz Controls And Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	10393802		Bushing, Door (wht)		Appelez-nous	-
2	C8972402		Stop, Door		Appelez-nous	-
3	R0181181		Kit,dr Closure   (Replaces: D7751404)			Immediately	$ 7.55
4	D7815915		Ass`y, Dr Hndl Blk		Appelez-nous	-
5	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.55
6	10504006		Cover, Hinge (black)		Appelez-nous	-
7	10495803		Hinge, Top (e-ct)		Appelez-nous	-
8	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
9	W11227370		Screw, Lock Brake Mounting   (Replaces: M0220418)			Immediately	$ 14.91
10	R0181181		Kit,dr Closure   (Replaces: D7748302)			Immediately	$ 7.55
11	10496105		Kit,hinge Rh Btm(b)		Appelez-nous	-
12	10399502		Kit,btm Hinge Shim		Appelez-nous	-
12	10399501		Kit,btm Hinge Shim		Appelez-nous	-
13	WP67006715		Screw   (Replaces: M0233847)				$ 7.55
14	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
15	D7793202		Ref. Trim, Retainer		Appelez-nous	-
16	WP489349		Screw   (Replaces: M0216515)			Immediately	$ 8.43
17	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
18	D7792812		Trim, Lower Refr Dr (black)		Appelez-nous	-
19	B8389004		Shim, Top Hinge		Appelez-nous	-
20	D7852021		Trim-bk Top Ref Dr		Appelez-nous	-
21	D7853808		Trim, Center Refr Dr. Black		Appelez-nous	-
22	WP67005716		Shim, Dr Closure (blk)   (Replaces: B8387704)				$ 7.83
22	B8387703		Shim, Door Closure		Appelez-nous	-
23	10860201		Kit, Bot.hinge Shim		Appelez-nous	-
