SELECT A DIAGRAM

01 - Front Cover


02 - Top And Cabinet, Literature


03 - Rear Panel


04 - Agitator, Basket And Tub


05 - Brake, Clutch, Gearcase, Motor & Pump


06 - Machine Base


07 - Control Panel


08 - Gearcase


09 - Wiring Harness


10 - Brake And Drive Tube


11 - Miscellaneous, Optional

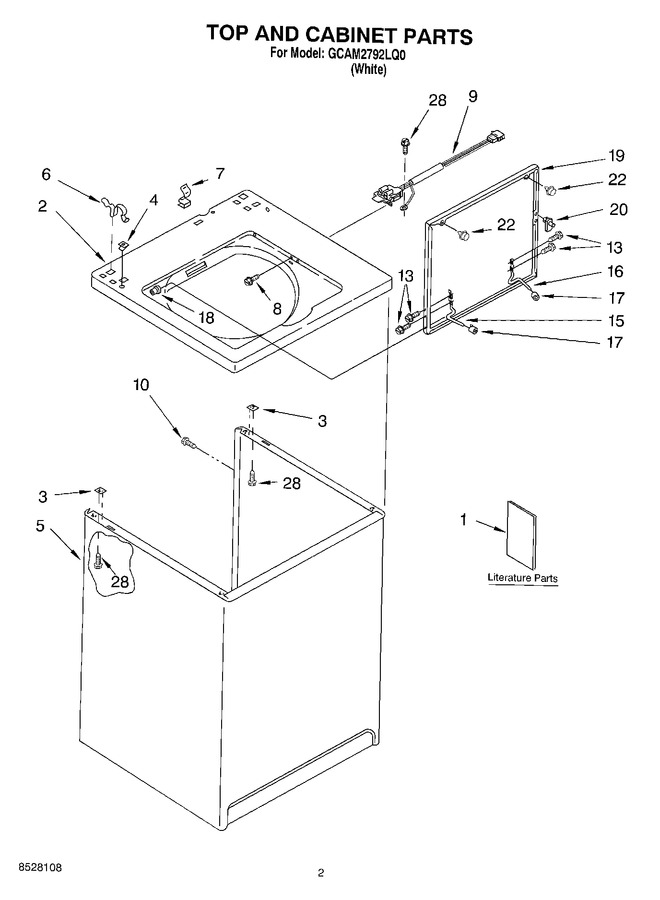

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT3955744		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8528108		Literature Parts (repair Parts List)		Appelez-nous	-
1	LIT8524748		Literature Parts (installation Instructions)		Appelez-nous	-
1	LIT8524800		Literature Parts (use & Care Guide)		Appelez-nous	-
2	388486		Top		Appelez-nous	-
3	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
4	358473		Nut, Push-in (2)				$ 5.84
5	63424		Cabinet				$ 370.02
6	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
7	WP90016		Clip   (Replaces: 90016)				$ 11.32
8	WP3356311		Screw & Washer, Lid Switch (2)   (Replaces: 3356311)				$ 7.75
9	285671		Switch, Lid   (Replaces: 3352629)			Immediately	$ 71.25
10	WP308685		Screw,10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
13	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: 3351355)			Immediately	$ 7.19
15	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 33.43
16	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 29.56
17	19119		Bumper, Lid Hinge				$ 5.75
18	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 7.63
19	8316256		Lid		Appelez-nous	-
20	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 7.67
22	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
28	WP3390631		Screw, 10-16 X 3/8 (5)   (Replaces: 3390631)				$ 7.82

    View Diagram in Separate Window       Print Part List
