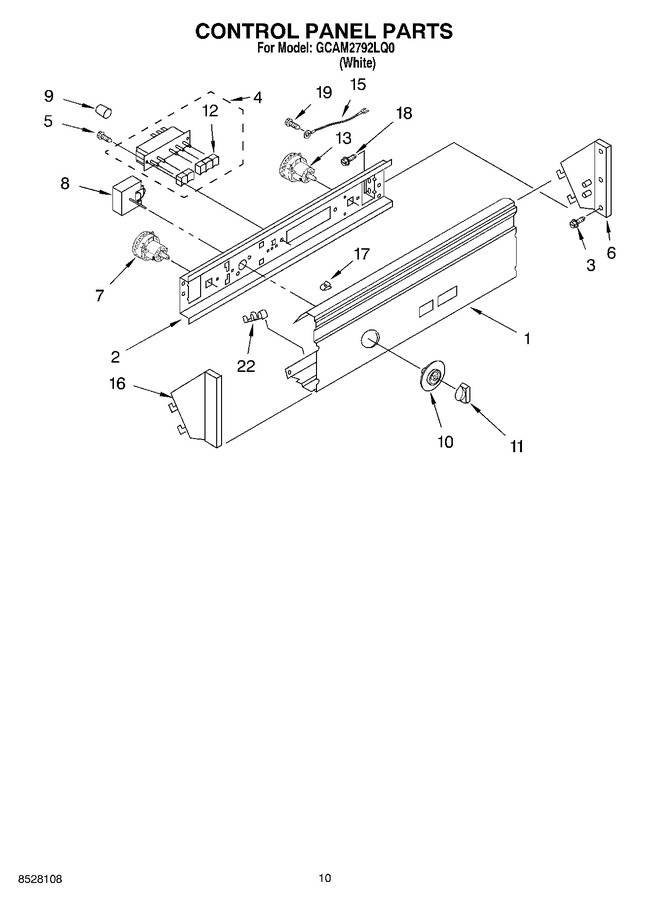

07 - Control Panel


08 - Gearcase


09 - Wiring Harness


10 - Brake And Drive Tube


11 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8524796		Panel, Console				$ 181.02
2	8524798		Bracket, Control		Appelez-nous	-
3	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.00
4	WPW10330136		Switch, Cycle Selector (includes Illus. No. 12)   (Replaces: 8316435)				$ 311.21
5	WPW10139210		Screw   (Replaces: 3390646)				$ 7.50
6	3949737		End Cap (r.h.)				$ 49.53
7	8524803		Assembly, Pressure Switch-t		Appelez-nous	-
8	WPW10116523		Timer   (Replaces: 3955742)				$ 342.20
9	W10491983		Cap   (Replaces: 359702)		Appelez-nous	-
10	8274412		Dial, Timer				$ 22.89
11	8529311		Knob, Timer				$ 53.94
12	WPW10330137		Pushbutton (5)   (Replaces: 8316433)			Immediately	$ 339.56
13	8524802		Pressure Switch, Twist Mount		Appelez-nous	-
15	3398893		Wire, Ground		Appelez-nous	-
16	3949734		End Cap (l.h.)		Appelez-nous	-
17	689559		Nut, Push-in (2)		Appelez-nous	-
18	WP388326		Screw, End Cap To Bracket (4)   (Replaces: 388326)				$ 8.11
19	3400073		Screw, Ground		Appelez-nous	-
22	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
