SELECT A DIAGRAM

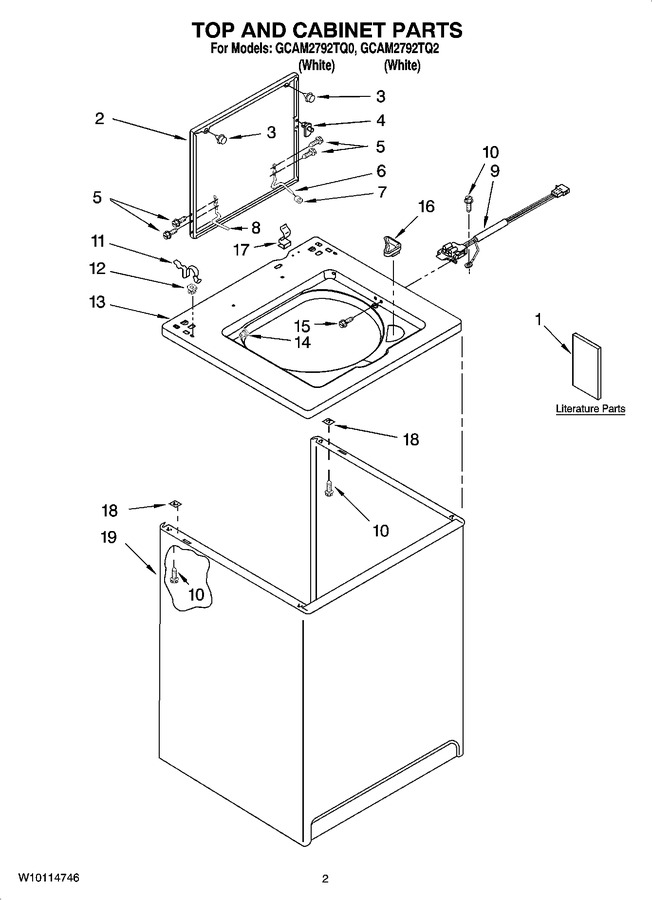

01 - Top And Cabinet Parts


02 - Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Control Panel Parts


07 - Gearcase Parts


08 - Wiring Harness Parts


09 - Brake And Drive Tube Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8316464		Use & Care Guide		Appelez-nous	-
1	W10114746		Repair Parts List		Appelez-nous	-
1	W10172197		Energy Guide		Appelez-nous	-
1	W10143395		Wiring Diagram		Appelez-nous	-
1	8524748		Installation Instructions		Appelez-nous	-
2	W10173243		Lid		Appelez-nous	-
3	WP9724509		Bumper, Lid (2)   (Replaces: 9724509)			Immediately	$ 7.93
4	WP358684		Strike, Lid Switch   (Replaces: 358684)			Immediately	$ 7.67
5	WPW10119828		Screw, Lid Hinge Mounting (4)   (Replaces: W10119828)			Immediately	$ 7.19
6	WP54583		Hinge, Lid (r.h.)   (Replaces: 54583)				$ 29.56
7	19119		Bumper, Lid Hinge				$ 5.75
8	WP54584		Hinge, Lid (l.h.)   (Replaces: 54584)				$ 33.43
9	285671		Switch, Lid   (Replaces: 3352629)			Immediately	$ 71.25
10	WP3390631		Screw, 10-16 X 3/8   (Replaces: 3390631)				$ 7.82
11	WP62780		Clip, Top & Cabinet & Rear Panel (2)   (Replaces: 62780)			Immediately	$ 7.80
12	358473		Nut, Push-in (2)				$ 5.84
13	8524697		Top				$ 54.58
14	WP21258		Bearing, Lid Hinge (2)   (Replaces: 21258)			Immediately	$ 7.63
15	WP3356311		Screw, Lid Switch   (Replaces: 3356311)				$ 7.75
16	WP3362952		Dispenser, Bleach   (Replaces: 3362952)			Immediately	$ 12.09
17	WP90016		Clip, Half Harness   (Replaces: 90016)				$ 11.32
18	WP62750		Spacer, Cabinet To Top (4)   (Replaces: 62750)			Immediately	$ 7.69
19	63424		Cabinet				$ 370.02

    View Diagram in Separate Window       Print Part List
