SELECT A DIAGRAM
New Model Search:

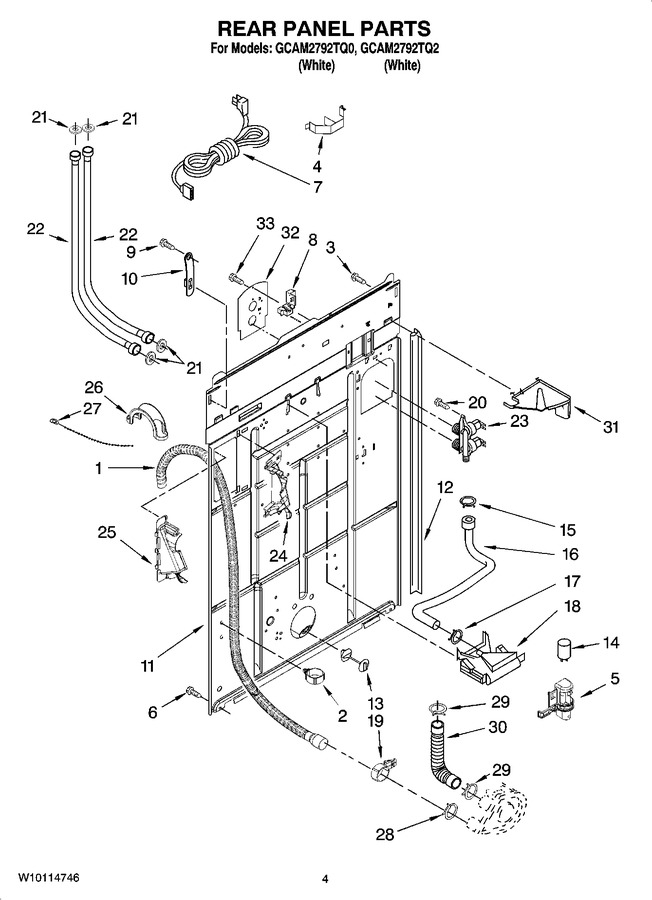

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10096921 | Drain Hose Assembly (includes Items 2, 19 & 26) (Replaces: W10122138) |
|
Immediately | $ 67.38 | ||||
| 2 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 3 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.95 | ||||
| 4 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 5 | 3949496 | Clip, Capacitor |
|
- | |||||
| 6 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 | |||||
| 7 | 285928 | Cord, Panel (includes Item 8) (Replaces: 3976231) |
|
$ 131.11 | |||||
| 8 | 3952821 | Relief, Strain (power Cord) |
|
- | |||||
| 9 | WP488729 | Screw, Strap To Panel (8-18 X 1/2) (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 10 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 7.78 | |||||
| 11 | 8318019 | Panel, Rear |
|
- | |||||
| 12 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 26.26 | |||||
| 13 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 18.90 | ||||
| 14 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 80.14 | ||||
| 15 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 8.40 | ||||
| 16 | WP8317926 | Hose, Vacuum Break (Replaces: 8317974) |
|
Immediately | $ 23.69 | ||||
| 17 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 8.40 | ||||
| 18 | WP3360977 | Vacuum Break (Replaces: 387606) |
|
Immediately | $ 50.46 | ||||
| 19 | 8541668 | Clamp, Hose |
|
$ 21.26 | |||||
| 20 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.86 | ||||
| 21 | WP16123 | Washer, Inlet Hose (Replaces: 3976300) |
|
$ 7.70 | |||||
| 22 | WP89503 | Hose, Inlet (red Coupler) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 22 | WP89503 | Hose, Inlet (blue Coupler) (Replaces: 8571377) |
|
Immediately | $ 24.09 | ||||
| 23 | WP8578341 | Valve, Water Inlet Bi-metal (Replaces: 8578341) |
|
$ 217.21 | |||||
| 24 | WPW10096921 | Bucket, Drain Hose (left Half) (Replaces: 8541669) |
|
Immediately | $ 67.38 | ||||
| 25 | WPW10096921 | Bucket, Drain Hose (right Half) (Replaces: 8541658) |
|
Immediately | $ 67.38 | ||||
| 26 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.97 | |||||
| 27 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.90 | |||||
| 28 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 8.39 | ||||
| 29 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.81 | ||||
| 30 | 285871 | Hose, Pump To Tub (includes Item 29) (Replaces: 3951449) |
|
Immediately | $ 26.68 | ||||
| 31 | 8539874 | Shield, Suds |
|
$ 7.01 | |||||
| 32 | 285930 | Plate, Inlet Valve (Replaces: 8541624) |
|
$ 74.56 | |||||
| 33 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.82 |
