SELECT A DIAGRAM

02 - Bulkhead , Literature And Optional


03 - Top And Cabinet


04 - Cabinet


05 - Wiring Harness


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	690236		Wire, Ground (motor)		Appelez-nous	-
5	238614		Bumper				$ 80.76
6	342601		Clip, Toe Panel (2)		Appelez-nous	-
7	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
8	WP308685		Screw, 10-16 X 1/2   (Replaces: 308685)			Immediately	$ 7.87
9	279320		Terminal Block   (Replaces: 690261)			Immediately	$ 68.25
10	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
15	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
16	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
18	346368		Panel, Rear		Appelez-nous	-
20	98669		Locator, Top				$ 12.03
21	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
22	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
23	WP489069		Screw, Hex W\a\sher H\e\ad (5)   (Replaces: 693994)			Immediately	$ 7.86
24	693202		Front Panel Assembly (white)		Appelez-nous	-
24	693203		Front Panel Assembly (almond)		Appelez-nous	-
25	49621		Foot   (Replaces: 688222)			Immediately	$ 8.55
26	WP691581		Lever, Door Switch   (Replaces: 295998)			Immediately	$ 8.09
28	690847		Cabinet (white)		Appelez-nous	-
28	690848		Cabinet (almond)		Appelez-nous	-
29	WP98129		Screw, Door Switch   (Replaces: 98129)				$ 7.56
30	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
33	WP18776		Lock, Front Top (2)   (Replaces: 353145)			Immediately	$ 12.68
34	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
37	WP3389441		Catch, Door   (Replaces: 3389441)				$ 6.20
38	279827		Motor Assembly 60 Hz.   (Replaces: 695075)			Immediately	$ 191.95
39	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
40	341241		Belt, Drive   (Replaces: 660997)			Immediately	$ 18.15
41	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 13.37
42	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
44	WP691366		Idler & Pulley   (Replaces: 691366)			Immediately	$ 22.47
46	WP660658		Clamp, Motor (2)   (Replaces: 660658)				$ 7.83
46	WP660658		Clamp, Motor (2) (alt.)   (Replaces: 343481)				$ 7.83
46	WP660658		Clamp, Motor (2) (alt.)   (Replaces: 685441)				$ 7.83
48	WP8066184		Pulley, 60 Hz.   (Replaces: 694871)			Immediately	$ 51.02
49	279827		Switch, Motor Start   (Replaces: 337351)			Immediately	$ 191.95
52	W11613302		Seal, Door   (Replaces: 685763)				$ 53.63
54	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.89
58	WP348023		Hinge & Pin Assembly (2)   (Replaces: 348023)				$ 8.42
59	WP694091		Screw, Door   (Replaces: 694091)				$ 7.19
61	280077		Door, Rear   (Replaces: 695656)				$ 197.58
62	697095		Panel, Toe (white)		Appelez-nous	-
62	697096		Panel, Toe (almond)		Appelez-nous	-
63	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 147.39
63	689314		Door, Front (almond)		Appelez-nous	-
64	689308		Handle, Door (almond)				$ 5.70
64	WP686711		Handle, Door (white)   (Replaces: 686711)			Immediately	$ 7.95
66	WP681414		Screw, 10-32 X 1/2 (grounding)   (Replaces: 690989)			Immediately	$ 7.85
70	W10854425		Clip, Front Panel (2)   (Replaces: 237823)			Immediately	$ 15.56
71	279318		Terminal, Tinned & Brass (3)			Immediately	$ 100.99
72	279393		Screw Kit (for Terminal Block)			Immediately	$ 47.37
87	356674		Wedge, Cone				$ 33.19
89	356837		Locator, Top		Appelez-nous	-
90	427190		Screw, 1/20-7/8		Appelez-nous	-
91	WP487939		Nut   (Replaces: 271172)				$ 7.72
92	90984		Nut, 5/16-18		Appelez-nous	-
99	688412		Clip, Retainer		Appelez-nous	-

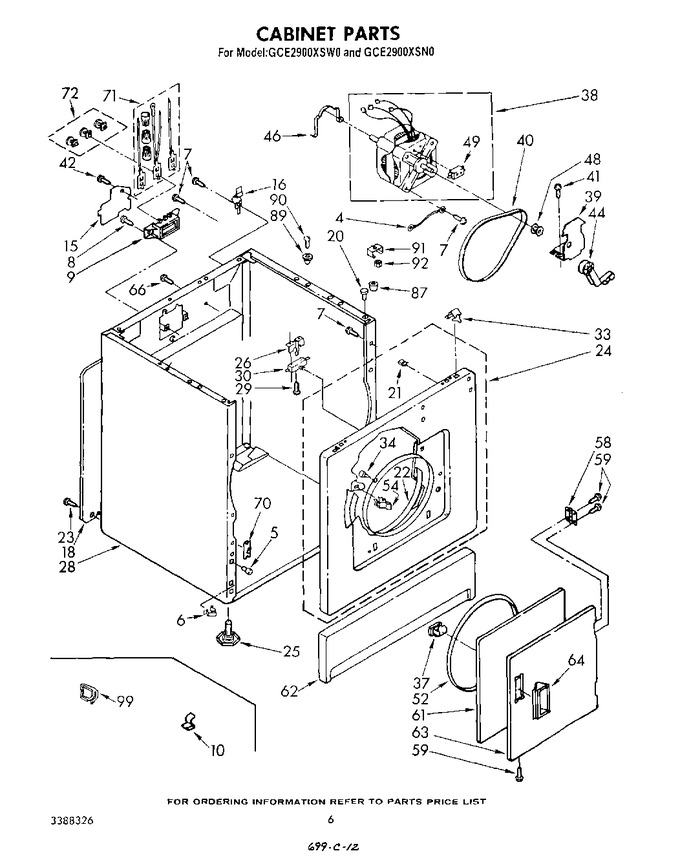

    View Diagram in Separate Window       Print Part List
