02 - Bulkhead , Literature And Optional
03 - Top And Cabinet
04 - Cabinet
05 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

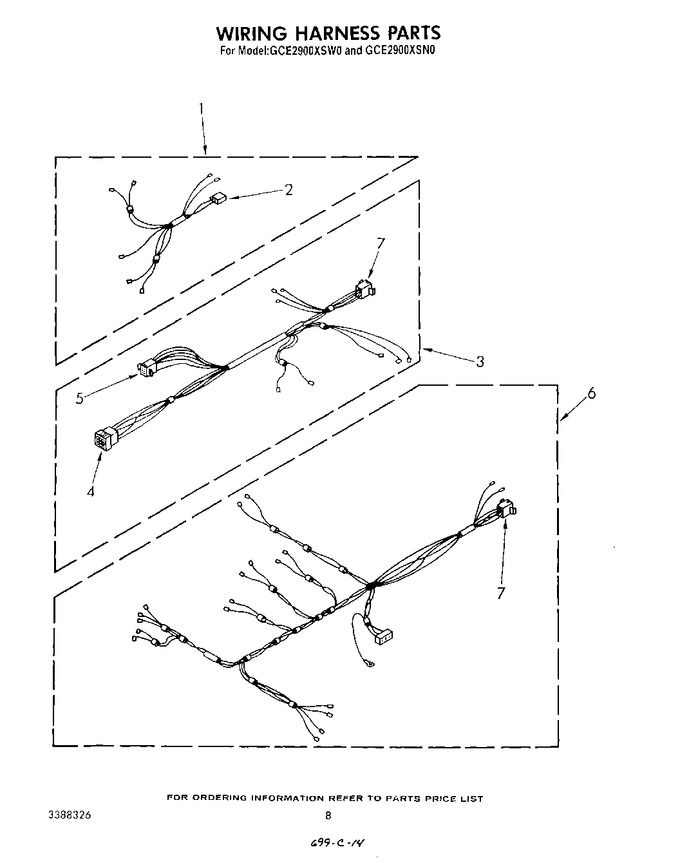

| 1 | 3388745 | Harness, Timer |
|
- | |||||
| 2 | 717252 | Connector |
|
- | |||||
| 3 | 3388746 | Harness, Wiring (upper) |
|
- | |||||
| 4 | 352458 | Cap, Terminal (6-way) (uses Terminal 94614) |
|
- | |||||
| 5 | 717253 | Connector |
|
- | |||||
| 6 | 3388747 | Harness, Wiring (lower) |
|
- | |||||
| 7 | 352457 | Plug, Terminal (6 Way) Uses Terminal 94614) |
|
- |
