View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

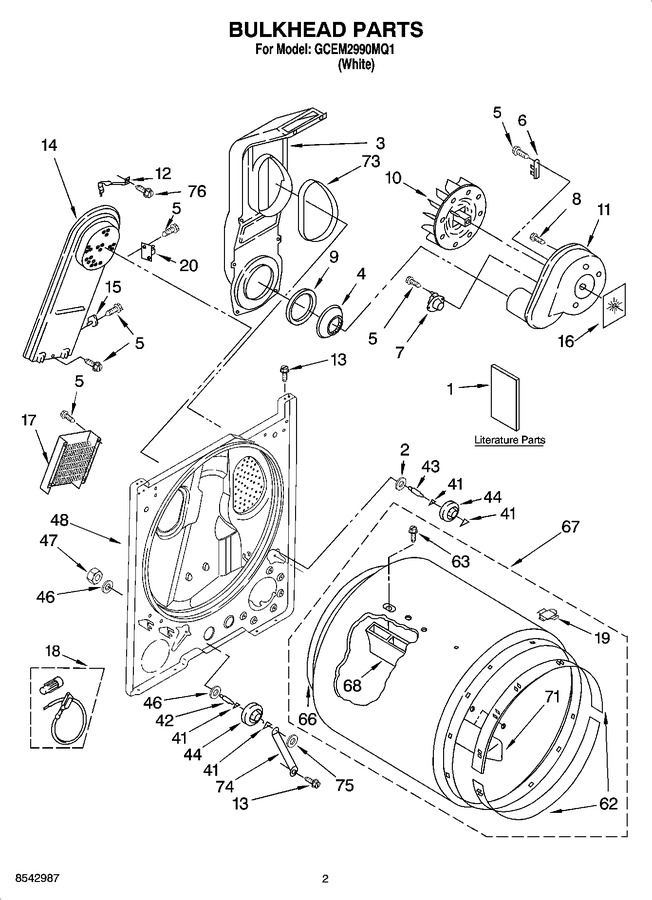

01 - Bulkhead Parts
02 - Top And Console Parts
03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT8527907 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT8542987 | Literature Parts (service Parts List) |
|
- | |||||
| 1 | LIT8527902 | Literature Parts (instructions, Installation) |
|
- | |||||
| 1 | LIT8528203 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | WP3388703 | Washer-support (Replaces: 3388703) |
|
$ 7.47 | |||||
| 3 | W11117429 | Lint Chute Assembly (Replaces: 348368) |
|
$ 175.01 | |||||
| 4 | W11233063 | Shield, Exhaust (Replaces: 696302) |
|
$ 22.29 | |||||
| 5 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 6 | WP3392519 | Fuse, Thermal (Replaces: 3392519) |
|
Immediately | $ 24.95 | ||||
| 7 | WP3387134 | Thermostat, Internal Bias (Replaces: 3387134) |
|
Immediately | $ 35.90 | ||||
| 8 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 9 | W11415783 | Seal, Lint Chute (Replaces: 347139) |
|
Immediately | $ 18.23 | ||||
| 10 | WP694089 | Wheel, Blower (includes Illus. 16) (Replaces: 694089) |
|
Immediately | $ 37.66 | ||||
| 11 | WP8577230 | Housing, Blower (Replaces: 8557384) |
|
$ 177.95 | |||||
| 12 | 279771 | Clip (Replaces: 3398161) |
|
$ 14.33 | |||||
| 13 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 14 | WP8541818 | Box, Heater (Replaces: 3397566) |
|
$ 234.81 | |||||
| 15 | WP3977767 | Thermostat, High Limit 221° F (105° C) (Replaces: 3977767) |
|
Immediately | $ 26.09 | ||||
| 16 | 3394196 | Seal, Blower |
|
$ 5.65 | |||||
| 17 | W11375548 | Heater Element (Replaces: 3403588) |
|
$ 125.43 | |||||
| 18 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.92 | ||||
| 19 | 8066086 | Drum, Hole Plug |
|
$ 10.75 | |||||
| 20 | 279816 | Thermal Cut-off (includes Illus. 15) (Replaces: 3977393) |
|
Immediately | $ 60.71 | ||||
| 41 | WPW10512946 | Ring, Tri (Replaces: 690997) |
|
Immediately | $ 8.80 | ||||
| 42 | WPW10359270 | Shaft, L.h. (Replaces: 3399506) |
|
Immediately | $ 72.71 | ||||
| 43 | WPW10359269 | Shaft, R.h. (Replaces: 3399507) |
|
Immediately | $ 47.30 | ||||
| 44 | 349241T | Roller, Support (2) (Replaces: 3397588) |
|
Immediately | $ 29.53 | ||||
| 46 | WP348197 | Washer (Replaces: 348197) |
|
$ 7.19 | |||||
| 47 | WP3359452 | Nut, 3/8-16 (2) (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 48 | W11178668 | Bulkhead (Replaces: 3403410) |
|
$ 285.05 | |||||
| 62 | 279441 | Ring, Bearing (2) (Replaces: 692526) |
|
Immediately | $ 66.22 | ||||
| 63 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 66 | W10612022 | Seal, Rear Drum (Replaces: 3406130) |
|
Immediately | $ 57.15 | ||||
| 67 | W10899578 | Drum Assembly (Replaces: 695587) |
|
$ 357.65 | |||||
| 68 | WP692490 | Baffle, Drum (2) (Replaces: 692490) |
|
$ 159.27 | |||||
| 71 | WP3403636 | Baffle, Drum (1) (Replaces: 3403636) |
|
$ 138.66 | |||||
| 73 | WP339956 | Seal (Replaces: 339956) |
|
Immediately | $ 8.63 | ||||
| 74 | W11684613 | Bracket, Support (Replaces: 3976434) |
|
$ 20.94 | |||||
| 75 | WP90296 | Clip (Replaces: 90296) |
|
$ 7.85 | |||||
| 76 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 76 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 76 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 38.21 | ||||
| 76 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 76 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.82 | |||||
| 76 | N/A | Accessory Parts |
|
- | |||||
| 76 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 53.85 | ||||
| 76 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
$ 11.75 |
