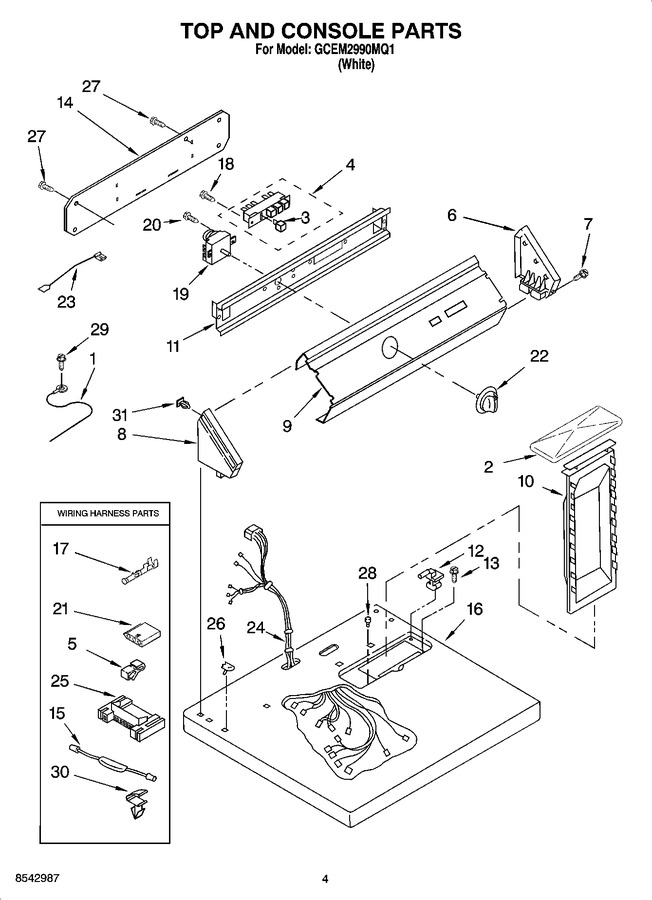

02 - Top And Console Parts
03 - Cabinet Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3398893 | Wire, Ground |
|
- | |||||
| 2 | 8283378 | Cover, Lint Screen |
|
$ 44.80 | |||||
| 3 | WPW10330137 | Button (4) (Replaces: 8316433) |
|
Immediately | $ 339.56 | ||||
| 4 | WPW10330137 | Switch, Pushbutton (Replaces: 8316437) |
|
Immediately | $ 339.56 | ||||
| 5 | W10113937 | Clip, Ground (Replaces: 357572) |
|
$ 10.83 | |||||
| 6 | 3949737 | End Cap (r.h.) |
|
$ 49.53 | |||||
| 7 | WPW10109200 | Screw, 11-16 X 3/4 (Replaces: 97787) |
|
Immediately | $ 8.00 | ||||
| 8 | 3949734 | End Cap (l.h.) |
|
- | |||||
| 9 | 8527826 | Panel, Control |
|
- | |||||
| 10 | WP349639 | Screen, Lint (Replaces: 349639) |
|
Immediately | $ 37.21 | ||||
| 11 | 8527828 | Bracket, Control |
|
- | |||||
| 12 | WPW10044480 | Hinge, L.h. (Replaces: 3978606) |
|
$ 7.72 | |||||
| 12 | WPW10044470 | Hinge, R.h. (Replaces: 3978605) |
|
$ 7.72 | |||||
| 13 | W11693756 | Screw, 8-18 X 3/8 (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 14 | 8066156 | Panel, Rear |
|
- | |||||
| 15 | 279872 | Resistor Assembly (Replaces: 3401076) |
|
$ 74.94 | |||||
| 16 | 8316630 | Top |
|
$ 214.66 | |||||
| 17 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.67 | |||||
| 18 | WP489128 | Screw, 8-32 X 3/8 (Replaces: 303921) |
|
$ 10.88 | |||||
| 19 | 3979596 | Timer |
|
$ 149.66 | |||||
| 20 | WPW10139210 | Screw, 8-18 X 5/16 (Replaces: 3390646) |
|
$ 7.50 | |||||
| 21 | 3936144 | Connector |
|
$ 20.21 | |||||
| 22 | 8529317 | Knob, Timer |
|
$ 45.01 | |||||
| 23 | 3393811 | Wire, Jumper (violet) |
|
- | |||||
| 23 | 3393812 | Wire, Jumper (blue) |
|
- | |||||
| 24 | 8529866 | Harness, Wiring |
|
- | |||||
| 25 | 3395683 | Connector (motor) |
|
Immediately | $ 51.86 | ||||
| 26 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.39 | |||||
| 27 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 28 | 297535 | Bumper, Lint Lid |
|
- | |||||
| 29 | WP3390631 | Screw, 10-16 X 5/16 (Replaces: 339554) |
|
$ 7.82 | |||||
| 30 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.79 | |||||
| 31 | 10875 | Wire (16 Ga. 80 C Blue) |
|
Immediately | $ 20.64 | ||||
| 31 | N/A | Following Parts Not Illustrated |
|
- | |||||
| 31 | 689559 | Nut, Push-in |
|
- |
