SELECT A DIAGRAM

02 - Bulkhead, Literature And Optional


03 - Console

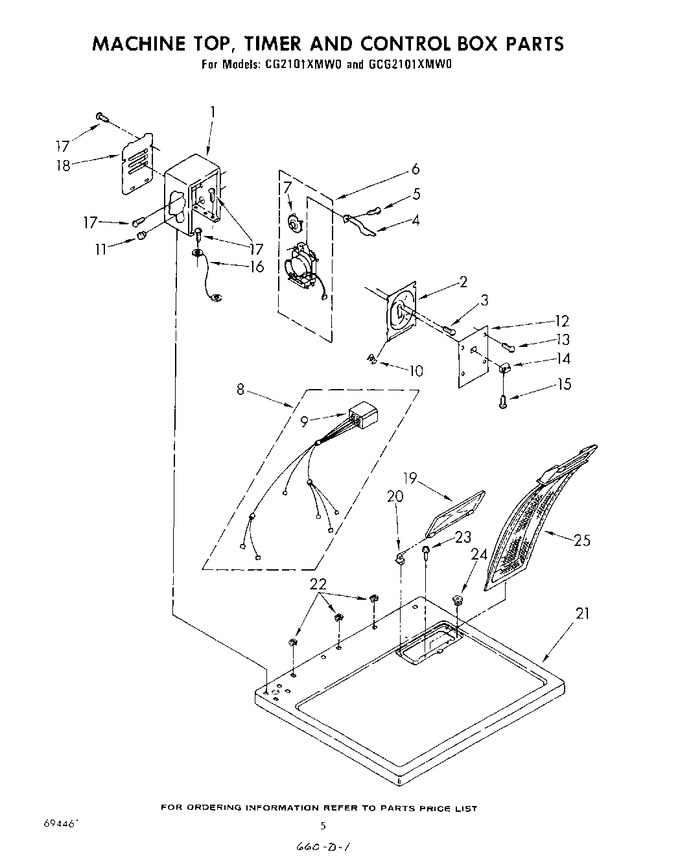

04 - Machine Top, Timer And Control Box


05 - Wiring Harness


06 - Cabinet


07 - 688637 Burner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	694870		Box, Control (white)		Appelez-nous	-
2	386272		Plate, Timer Mounting		Appelez-nous	-
3	W11808444		Screw, Timer To Plate   (Replaces: 98139)		Appelez-nous	-
4	694583		Lever, Timer		Appelez-nous	-
5	98831		Screw, Lever To Timer		Appelez-nous	-
6	279737		Timer (includes 6 Pin Timing Cam)   (Replaces: 346879)			Immediately	$ 312.10
7	WP339855		Timing Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.37
7	51-161-6		Timing Cam (6-pin (30 Min))   (Replaces: 343777)				$ 34.52
7	WP339854		Timing Cam (9 Pin (40 Min.))   (Replaces: 339854)				$ 6.48
8	695076		Harness, Timer		Appelez-nous	-
9	352457		Plug, Terminal (6 Way)		Appelez-nous	-
10	W10113937		Clip, Grounding   (Replaces: 357572)				$ 10.83
11	352481		Bushing, Snap		Appelez-nous	-
12	694568		Cover, Control Box		Appelez-nous	-
13	WP965173		Screw, 8 X 3/8 (4)   (Replaces: 345304)			Immediately	$ 10.72
14	386276		Button, Timer Set		Appelez-nous	-
15	WP486754		Screw, 6-32 X 1/4   (Replaces: 246119)				$ 7.50
16	340025		Wire, Ground		Appelez-nous	-
17	WP681414		Screw, Ground Wire To Top   (Replaces: 343641)			Immediately	$ 7.85
18	295871		Panel, Control Box Rear		Appelez-nous	-
19	688150		Cover, Lint Screen		Appelez-nous	-
20	WPW10044470		Hinge, Lint Lid (r.h.)   (Replaces: 339229)				$ 7.72
20	WPW10044480		Hinge, Lint Lid (l.h.)   (Replaces: 339230)				$ 7.72
21	695009		Top (white)		Appelez-nous	-
22	98219		Nut, Push-in (8)		Appelez-nous	-
23	W11693756		Screw, Lint Chute To Top (2) (8-18 X 5/8)   (Replaces: 688983)			Immediately	$ 14.06
24	98460		Nut, Push-in (2)				$ 12.07
25	339392V		Screen, Lint   (Replaces: 690634)			Immediately	$ 41.91

    View Diagram in Separate Window       Print Part List
