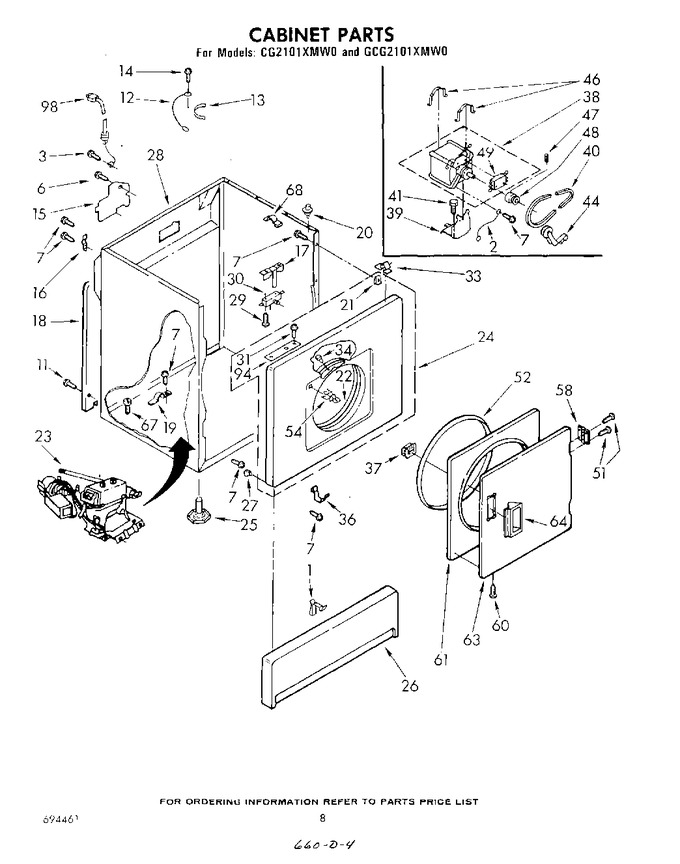

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	341776		Clip, Toe Panel		Appelez-nous	-
2	690236		Wire, Ground (motor)		Appelez-nous	-
3	WP681414		Screw 10-32 X 1/2   (Replaces: 690989)			Immediately	$ 7.85
6	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 7.85
7	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
11	WP489069		Screw, Rear Panel Mounting   (Replaces: 693994)			Immediately	$ 7.86
12	364089		Wire, Ground		Appelez-nous	-
13	22965		Strap, Ground		Appelez-nous	-
14	132848		Screw, 10-24 X 1		Appelez-nous	-
15	W11736322		Cover, Block   (Replaces: 690893)		Appelez-nous	-
16	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
17	WP691581		Lever, Door Switch   (Replaces: 295998)			Immediately	$ 8.09
18	347736		Panel, Rear		Appelez-nous	-
19	341029		Clamp, Pipe		Appelez-nous	-
20	98669		Locator, Top (2)				$ 12.03
20	356837		Locator, Top (1)		Appelez-nous	-
21	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
22	279264		Seal & Bearing Assembly   (Replaces: 349462)			Immediately	$ 74.52
23	688637		Burner Assembly (60 Hz.) (refer To Page 10 For Further Breakdown)		Appelez-nous	-
24	693980		Front Panel Assembly (white)		Appelez-nous	-
25	49621		Foot, Plastic (4)   (Replaces: 688222)			Immediately	$ 8.55
26	237035		Panel, Toe (white)		Appelez-nous	-
27	690625		Clip, Toe Panel (2)		Appelez-nous	-
28	690847		Cabinet (white)		Appelez-nous	-
29	WP98129		Screw, 6-20 X 7/8 (2)   (Replaces: 98129)				$ 7.56
30	W10820036		Switch, Door   (Replaces: 347207)			Immediately	$ 30.50
31	WP90767		Screw   (Replaces: 90767)			Immediately	$ 7.82
33	WP18776		Lock, Front Top (2)   (Replaces: 18776)			Immediately	$ 12.68
34	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
36	WP297092		Clip, Hinge (2)   (Replaces: 297092)			Immediately	$ 8.24
37	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
38	279827		Motor, 60 Hz.   (Replaces: 690870)			Immediately	$ 191.95
39	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
40	341241		Belt, Drive   (Replaces: 349533)			Immediately	$ 18.15
41	3400500		Bolt, 5/16-18 X 3/4   (Replaces: 172455)			Immediately	$ 13.37
44	WP691366		Idler & Pulley   (Replaces: 691366)			Immediately	$ 22.47
46	WP660658		Clip, Motor (2) (alt.)   (Replaces: 343481)				$ 7.83
46	WP660658		Clip, Motor (2) (alt.)   (Replaces: 685441)				$ 7.83
46	WP660658		Clip, Motor (2)   (Replaces: 660658)				$ 7.83
47	690046		Set Screw		Appelez-nous	-
48	W11233559		Pulley, 60 Hz., (includes Illus. 47)   (Replaces: 685011)				$ 113.89
49	279827		Use W/690870 Motor   (Replaces: 337351)			Immediately	$ 191.95
51	689791		Screw, Hinge (6)		Appelez-nous	-
52	W11613302		Seal, Door   (Replaces: 685763)				$ 53.63
54	279570		Strike, Door   (Replaces: 693717)			Immediately	$ 8.89
58	WP348023		Hinge & Pin Assembly (2)   (Replaces: 348023)				$ 8.42
60	WP694091		Screw, Door (8)   (Replaces: 694091)				$ 7.19
61	280077		Door, Rear (white)   (Replaces: 348201)				$ 197.58
63	WP348205		Door, Front (white)   (Replaces: 348205)			Immediately	$ 147.39
64	WP686711		Handle, Door (white)   (Replaces: 686715)			Immediately	$ 7.95
67	WPW10366705		Screw, Burner Mounting   (Replaces: 686953)				$ 7.50
68	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.09
94	688021		Bracket		Appelez-nous	-
98	W11222083		Cord, Power   (Replaces: 344020)				$ 120.59
98	W10402145		Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg)   (Replaces: 239072)				$ 108.77
98	279243		Kit, Conversion (type 1 To Type 3)		Appelez-nous	-
