SELECT A DIAGRAM

01 - Front Cover

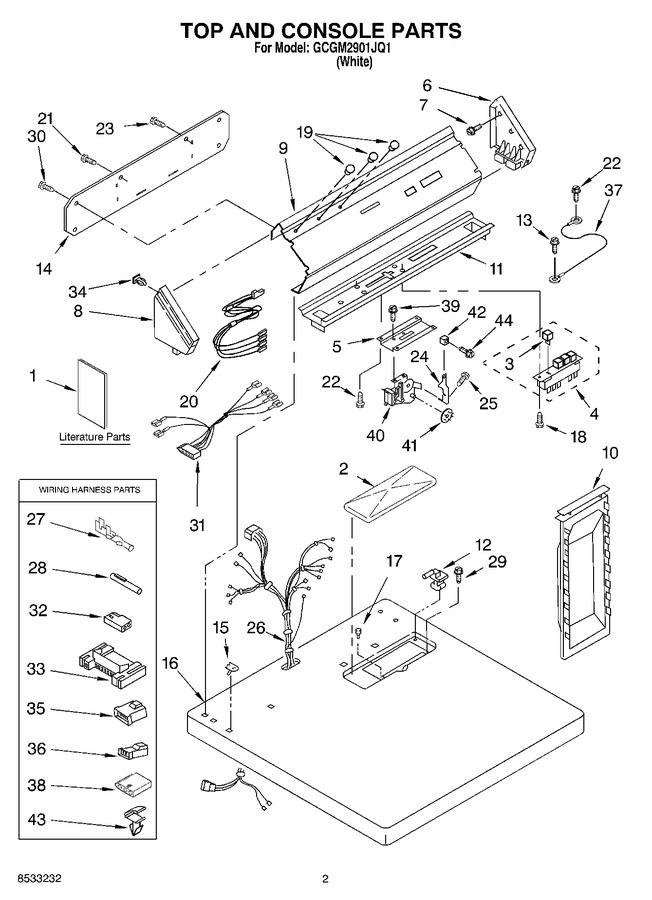

02 - Top And Console, Literature


03 - Cabinet


04 - Bulkhead


05 - 3401771 Burner Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8533207		Literature Parts (label, Wiring Diagram)		Appelez-nous	-
1	LIT8533232		Literature Parts (repair Parts List)		Appelez-nous	-
1	LIT8316557		Literature Parts (instructions, Installation)		Appelez-nous	-
2	8283378		Cover, Lint Screen				$ 44.80
3	WPW10330137		Pushbutton   (Replaces: 8316433)			Immediately	$ 339.56
4	WPW10330137		Switch, Pushbutton   (Replaces: 8316437)			Immediately	$ 339.56
5	3388374		Control, Bracket		Appelez-nous	-
6	3949737		End Cap (r.h.)				$ 49.53
7	WPW10109200		Screw, 11-16 X 3/4   (Replaces: 97787)			Immediately	$ 8.80
8	3949734		End Cap (l.h.)		Appelez-nous	-
9	8316633		Control Panel		Appelez-nous	-
10	WP349639		Handle & Lint Screen Assembly   (Replaces: 349639)			Immediately	$ 37.21
11	3388375		Bracket, Control		Appelez-nous	-
12	WPW10044480		Hinge, L.h.   (Replaces: 3978606)				$ 8.11
12	WPW10044470		Hinge, R.h.   (Replaces: 3978605)				$ 8.11
13	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
14	386367		Panel, Rear		Appelez-nous	-
15	WP357213		Nut, Push-in (2)   (Replaces: 357213)				$ 7.76
16	8316630		Top				$ 214.66
17	297535		Bumper, Lint Lid		Appelez-nous	-
18	WP355214		Screw 8-18 X 11/32   (Replaces: 3393918)			Immediately	$ 8.80
19	WP3348109		Lens, Amber (3)   (Replaces: 3348109)			Immediately	$ 13.14
20	3401761		Lights, Indicator		Appelez-nous	-
21	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 7.55
22	WP3390631		Screw, 10-16 X 5/16   (Replaces: 339554)				$ 8.25
23	W10850756		Screw, Ground (10-32 X 5/8)   (Replaces: 697776)				$ 8.20
24	694583		Lever, Timer		Appelez-nous	-
25	WP3388228		Screw, 6-20 X 3/8   (Replaces: 3388228)				$ 7.30
26	8529862		Harness, Wiring (complete)		Appelez-nous	-
27	WP94614		Terminal (female)   (Replaces: 94614)				$ 8.05
28	351296		Receptacle		Appelez-nous	-
29	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 14.76
30	WP693995		Screw 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.55
31	3401663		Harness, Console		Appelez-nous	-
32	W10113937		Receptacle, 2-way   (Replaces: 357572)				$ 11.37
33	3395683		Connector (motor)			Immediately	$ 54.45
34	689559		Nut, Push-in		Appelez-nous	-
35	WP3403498		Connector, 3 Position   (Replaces: 3403498)				$ 7.30
36	WP3403499		Connector, 2 Position   (Replaces: 3403499)				$ 6.02
37	690853		Wire, Ground		Appelez-nous	-
38	3936144		Connector				$ 21.22
39	W11808444		Screw, 8-32 X 5/16   (Replaces: 98139)		Appelez-nous	-
40	279737		Timer, 60 Hz. (incl. 4 Pin Cam)   (Replaces: 3389668)			Immediately	$ 312.10
41	WP339855		Cam (4 Pin (45 Min.))   (Replaces: 339855)				$ 8.79
41	51-161-6		Cam (6 Pin (30 Min.))   (Replaces: 343777)				$ 34.52
41	WP3387974		Cam (3 Pin (60 Min.))   (Replaces: 3387974)				$ 8.74
42	8316442		Pushbutton		Appelez-nous	-
43	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 8.18
44	310410		Screw, 5-20 X 1/4		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
