SELECT A DIAGRAM

01 - Front Cover


02 - Top And Console, Literature


03 - Cabinet


04 - Bulkhead


05 - 3401771 Burner Assembly

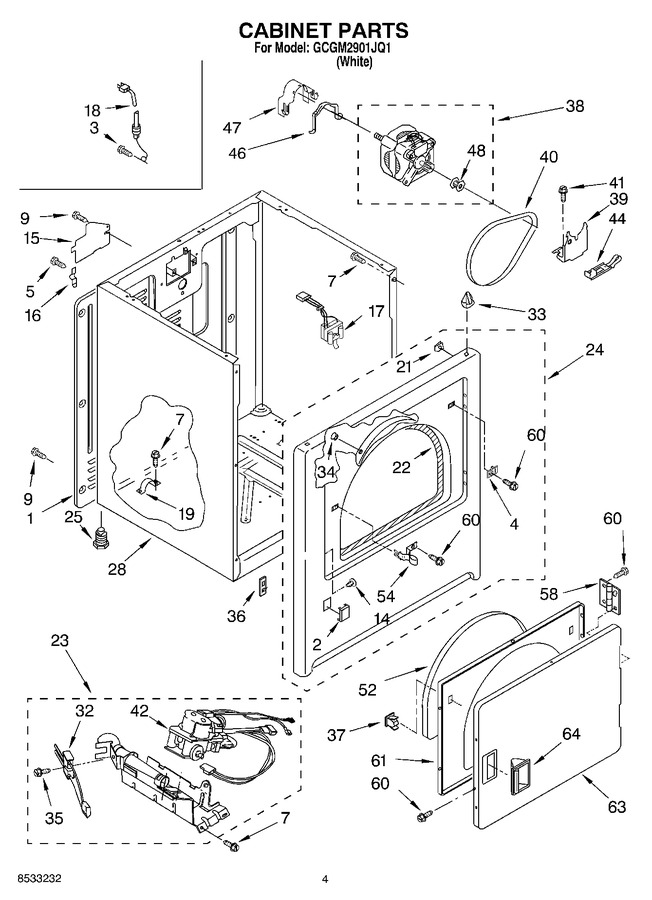

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	280043		Panel, Rear   (Replaces: 3396805)				$ 341.30
2	3394975		Plug, Front Panel				$ 5.70
3	W10850756		Screw, Ground (10-32 X 5/8)   (Replaces: 697776)				$ 7.76
4	WP3403630		Plug, Strike   (Replaces: 3403630)				$ 7.53
5	WP388326		Screw, 8-18 X 1-1/4   (Replaces: 388326)				$ 8.11
7	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
9	WP693995		Screw, Hex Head 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
14	WP3404413		Plug, Hinge Hole   (Replaces: 3404413)			Immediately	$ 7.95
15	W11539855		Cover, Block   (Replaces: 3396795)			Immediately	$ 599.76
16	WP8066217		Hinge, Top (2)   (Replaces: 238088)				$ 7.82
17	WPW10237959		Door Switch Assembly   (Replaces: 3406109)			Immediately	$ 55.64
18	W11628810		Cord, Power   (Replaces: 3401401)				$ 97.05
19	341029		Clamp, Pipe (rear)		Appelez-nous	-
21	WP98234		Clip, Ground (2)   (Replaces: 98234)			Immediately	$ 11.39
22	W11035878		Seal & Bearing Assembly   (Replaces: 3406129)			Immediately	$ 78.78
23	3401771		Burner Assembly, 60 Hz.		Appelez-nous	-
24	3403447		Front Panel Assembly		Appelez-nous	-
25	49621		Foot, Plastic   (Replaces: 3392100)			Immediately	$ 8.55
25	49621		Foot - Optional (extended Length Package Of 2 ) (not Included)   (Replaces: 279810)			Immediately	$ 8.55
28	8533643		Cabinet   (Replaces: 8530603)				$ 399.26
32	279311		Ignitor   (Replaces: 686590)			Immediately	$ 78.90
33	WP18776		Lock, Front Top   (Replaces: 690363)			Immediately	$ 12.68
34	279220		Clip, Felt Pad (2)   (Replaces: 685203)				$ 20.65
35	WPW10366705		Screw & Washer   (Replaces: 3393909)				$ 7.50
36	W10854425		Clip, Front Panel   (Replaces: 3394083)			Immediately	$ 15.56
37	279570		Catch, Door Assembly   (Replaces: 690081)			Immediately	$ 8.89
38	279827		Motor Assembly 60 Hz.   (Replaces: 661654)			Immediately	$ 191.95
39	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
40	341241		Belt, Drive   (Replaces: 8066065)			Immediately	$ 18.15
41	3400500		Bolt, 5/16-18 X 3/4			Immediately	$ 13.37
42	279923		Valve, Gas 60 Hz. (complete)   (Replaces: 3401775)			Immediately	$ 286.03
44	WP691366		Idler & Slide Assembly   (Replaces: 3394332)			Immediately	$ 22.47
46	WP660658		Clip, Motor (2)   (Replaces: 660658)				$ 7.83
46	WP660658		(alt.)   (Replaces: 343481)				$ 7.83
46	WP660658		(alt.)   (Replaces: 685441)				$ 7.83
47	WP3404162		Clamp, Motor   (Replaces: 3404162)			Immediately	$ 7.82
48	WP8066184		Pulley, 60 Hz.   (Replaces: 3394341)			Immediately	$ 51.02
52	W10861521		Seal, Door   (Replaces: 3405246)			Immediately	$ 58.69
54	W11429589		Strike, Door   (Replaces: 3403431)			Immediately	$ 20.99
58	WPW10362431		Hinge, Door   (Replaces: 3405514)			Immediately	$ 7.91
60	WP488627		Screw, 8-18 X 1/2   (Replaces: 342055)				$ 7.57
61	WP3402341		Door, Rear   (Replaces: 3402341)				$ 198.77
63	W10861227		Door, Front   (Replaces: 3402335)				$ 256.44
64	WP3405184		Handle, Door   (Replaces: 3405184)				$ 76.01
