Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 10705802 Harness, Mach Comp Appelez-nous -
2 10481210 Assy, Cond Pan Appelez-nous -
3 YB8358601 Bale Strap Appelez-nous -
4 B5742604 Blade, Fan Appelez-nous -
5 10442702 Gasket, Cond. Fan Appelez-nous -
6 WPW10169124 Grommet, Compressor   (Replaces: 10835901) Special Order $ 7.55

7 M0221523 Screw, Shldr Appelez-nous -
8 10582501 Bracket, Cond. Motor Appelez-nous -
9 10427402 Pan, Drain Appelez-nous -
10 10377017 Overload Appelez-nous -
11 WP10097204 Relay-ptc   (Replaces: 10097204) Special Order $ 137.72

12 833697 Motor, Fan   (Replaces: 10884501) In-Stock Immediately $ 88.15

13 W10160407 Compressor   (Replaces: 10927202) Special Order $ 629.92

14 B5667304 Wire Clip Appelez-nous -
15 10426904 Shroud, Cond. Fan (e Coat) Appelez-nous -
16 M0223803 Screw Appelez-nous -
17 WP90767 Screw, Sm   (Replaces: M0224416) In-Stock Immediately $ 8.25

18 C8960801 Term Cover Appelez-nous -
19 M0253916 Screw Appelez-nous -
20 10266402 Shield, Capacitor Appelez-nous -
21 WPW10662129 Capacitor   (Replaces: C8931607) In-Stock Immediately $ 58.86

22 WP489399 Screw   (Replaces: M0232903) Special Order $ 7.30

23 WP90767 Screw   (Replaces: M0216716) In-Stock Immediately $ 8.25


    View Diagram in Separate Window     Print Icon   Print Part List

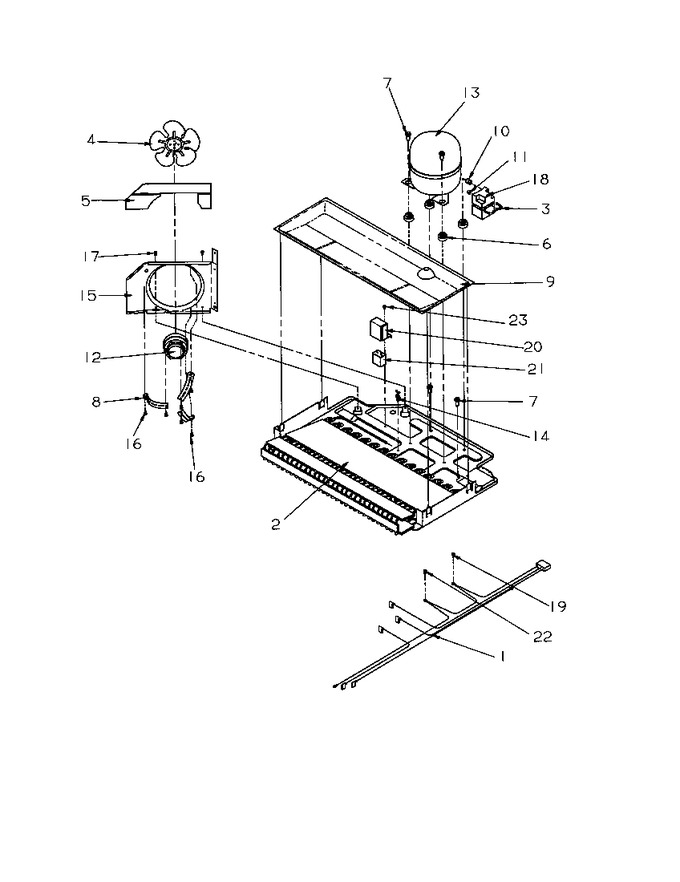

Diagram for GTG21B2L (BOM: P1193001W L)
