01 - Cabinet Back


02 - Cabinet Bottom


03 - Cabinet Shelving


04 - Cabinet Shelving


05 - Compressor Compartment


06 - Control Assy


07 - Divider Block


08 - Evap Assy


09 - Fz Door


10 - Ref Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

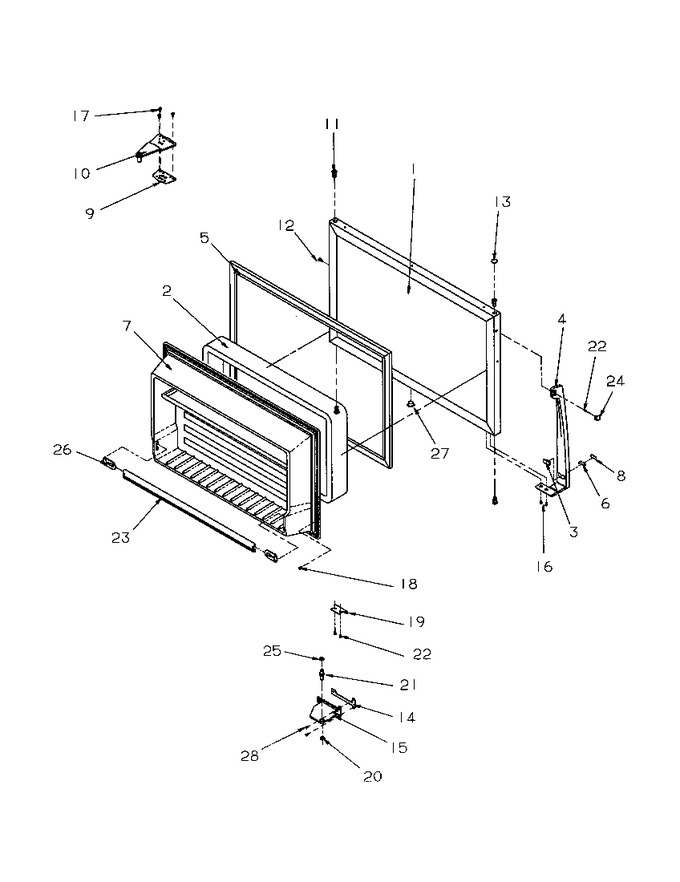

1	10925605L		Assy. Frz Door Fm		Appelez-nous	-
2	B0523593		Insulation, Batt Frz. Dr.		Appelez-nous	-
3	10184305		Plug Nameplate		Appelez-nous	-
4	10253525		Assy, Fz Handle Blk		Appelez-nous	-
5	10456804		Gasket,fz Dr(white)		Appelez-nous	-
6	10184501		Pad Nameplate		Appelez-nous	-
7	10412001		Liner, Fz Door		Appelez-nous	-
8	10184402		Nameplate, Handle		Appelez-nous	-
9	10448503		Shim, Top Hinge		Appelez-nous	-
9	10448502		Shim, Top Hinge		Appelez-nous	-
9	10448501		Shim, Top Hinge		Appelez-nous	-
10	10185104		Assy, Top Hinge		Appelez-nous	-
11	10961001		Bushing, Door (wht)		Appelez-nous	-
12	M0310730		Plug Button (almond)		Appelez-nous	-
13	10686402		Plug, Button		Appelez-nous	-
14	10562202		Shim, Center Hinge		Appelez-nous	-
14	10562203		Shim, Center Hinge		Appelez-nous	-
14	10562201		Shim, Center Hinge		Appelez-nous	-
15	10433410		Hinge-center		Appelez-nous	-
16	WPW10348409		Screw   (Replaces: M0221718)			Immediately	$ 8.20
17	R9800670		Kit, Screw   (Replaces: M0226331)				$ 10.58
18	M0219730		Screw				$ 7.65
19	10447102		Stop, Door		Appelez-nous	-
20	WPM0274057		Shim, Non Metal (wht)   (Replaces: M0274057)			Immediately	$ 8.40
21	WP67006744		Pin, Hinge (ctr)   (Replaces: 10351001)				$ 8.68
22	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
23	10423915		Retainer, Ref Door		Appelez-nous	-
24	10201809		Cover, Handle Screw-blk		Appelez-nous	-
25	M0274058		Shim, Non Metal (wht)				$ 5.83
26	10926101		Clip, Retaining		Appelez-nous	-
27	M0310338		Plug Button Almond		Appelez-nous	-
28	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.72
