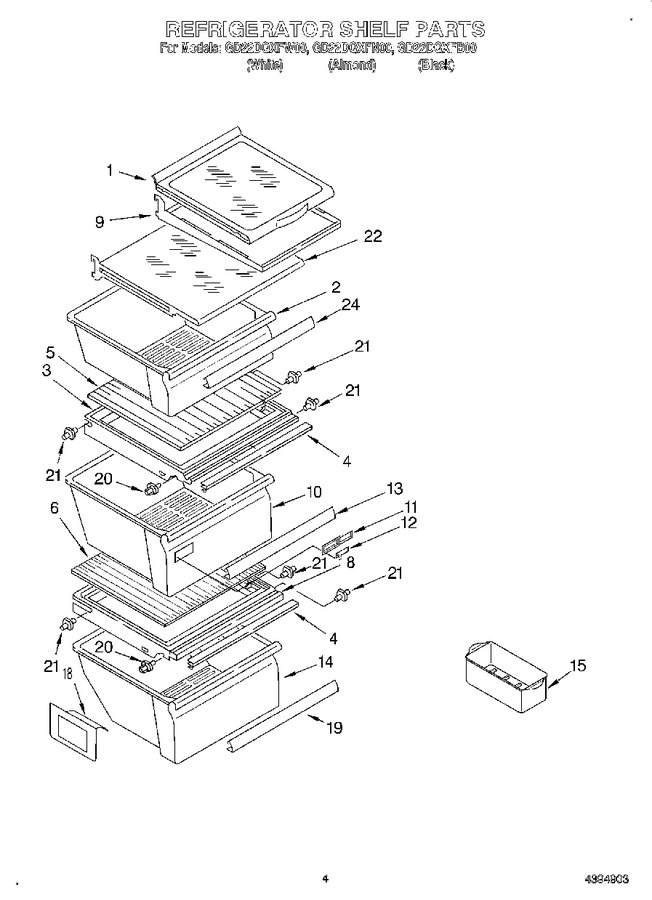

03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141748		Shelf Assembly, Glass Sliding (2)   (Replaces: 2194736)				$ 340.62
2	W11497323		Snack Bin   (Replaces: 2194916)				$ 223.66
3	W10508993		Cover, Crisper   (Replaces: 2194578)				$ 291.29
4	2174442		Gasket, Cover (front)		Appelez-nous	-
5	W10864399		Glass, Cover   (Replaces: 2174150)				$ 220.98
6	W10864399		Glass, Cover   (Replaces: 2179259)				$ 220.98
8	W10508993		Cover, Meat Pan   (Replaces: 2189601)				$ 291.29
9	2174042		Frame, Shelf (2)		Appelez-nous	-
10	WP2188656		Pan, Crisper   (Replaces: 2194914)				$ 136.40
11	WP2179343		Front, Crisper Pan   (Replaces: 2179343)				$ 32.40
12	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 29.14
13	WP2179234		Trim, Handle   (Replaces: 2194913)				$ 84.35
14	2194907		Meat Pan		Appelez-nous	-
15	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 18.61
18	2179350		Deflector				$ 81.80
19	WP2179234		Trim, Handle   (Replaces: 2194906)				$ 84.35
20	4388539		Shelf Stud   (Replaces: 2172943)				$ 17.54
21	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 31.34
22	2194734		Shelf, Snack Bin		Appelez-nous	-
24	WP2179243		Trim, Handle   (Replaces: 2179243)				$ 104.43
