SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door

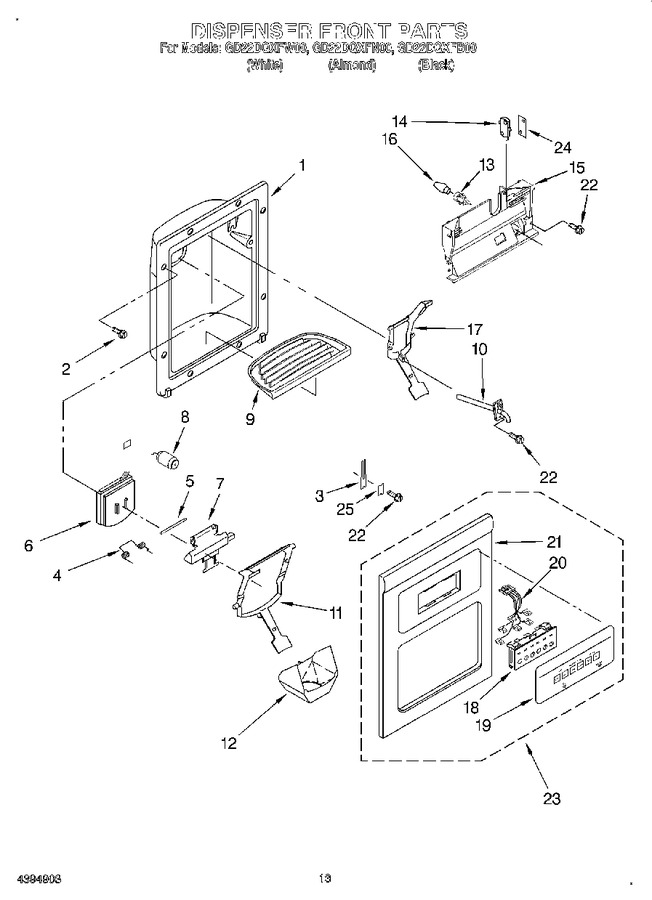

09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
2	WP489069		Screw   (Replaces: 489101)			Immediately	$ 7.86
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.77
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 83.24
5	WP2196195		Pin   (Replaces: 2180210)				$ 14.58
6	2180205		Door, Ice		Appelez-nous	-
7	2180208		Door Mechanism Assembly		Appelez-nous	-
8	2180223		Delay Mechanism		Appelez-nous	-
9	2180242		Grille, Overflow (almond)		Appelez-nous	-
9	2180241		Grille, Overflow (white)				$ 8.33
9	2180243		Grille, Overflow (black)				$ 31.35
10	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2180225)				$ 276.43
11	2180257		Lever, Ice Dispenser (almond)		Appelez-nous	-
11	2180256		Lever, Ice Dispenser (white)		Appelez-nous	-
11	2180258		Lever, Ice Dispenser (black)		Appelez-nous	-
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.63
13	2180200		Lamp Holder				$ 98.66
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 27.34
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 24.39
16	WP22002263		Bulb, Light   (Replaces: 851389)			Immediately	$ 13.66
17	WPW10152859		Lever, Water Dispenser (black)   (Replaces: 2180267)			Immediately	$ 97.92
17	WPW10152858		Lever, Water Dispenser (white)   (Replaces: 2180265)				$ 104.60
17	2180266		Lever, Water Dispenser (almond)		Appelez-nous	-
18	WP2180236		Switch Assembly (also Order No. 19)   (Replaces: 2180236)				$ 274.29
19	2180237		Plaque, Front Cover (white)		Appelez-nous	-
19	2180238		Plaque, Front Cover (almond)		Appelez-nous	-
19	2180239		Plaque, Front Cover (black)		Appelez-nous	-
20	2311650		Wire Assembly   (Replaces: 2180240)				$ 89.68
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 7.84
23	2180232		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)		Appelez-nous	-
23	2180231		Front Cover Assembly (includes Items 18, 19, 20 & 21) (almond)		Appelez-nous	-
23	2180230		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.67
