SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control

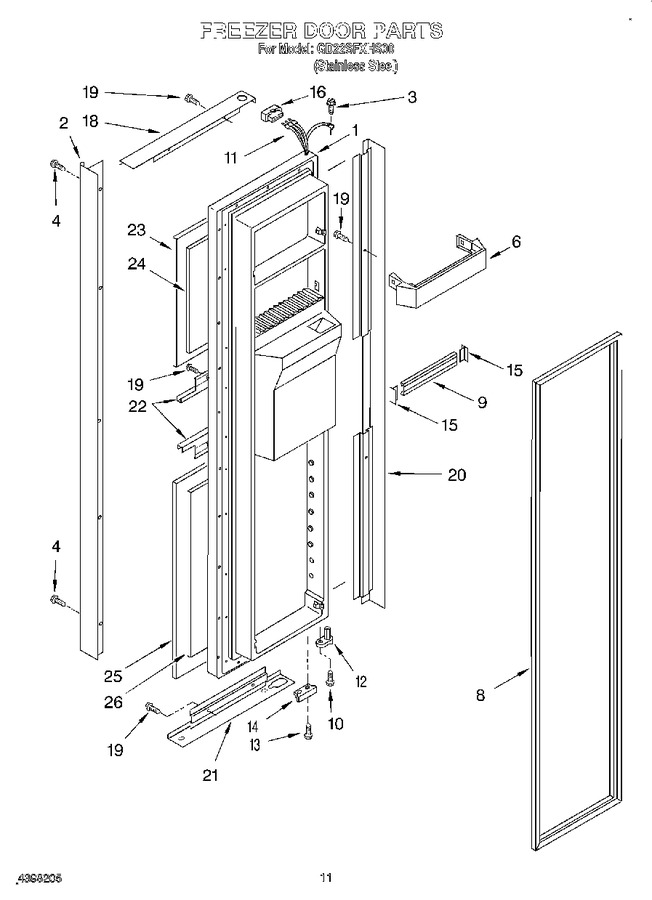

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2203615S		Freezer Door (includes Item No.8 And Dispenser Front Parts)		Appelez-nous	-
2	2203277S		Handle		Appelez-nous	-
3	WP489128		Screw   (Replaces: 488500)				$ 10.88
4	489481		Screw		Appelez-nous	-
6	WP2156021		Trivet, Shelf (4)   (Replaces: 2156021)				$ 63.27
8	2159080		Door Gasket, Magnetic (service) (black)				$ 310.39
9	WPW10307490		Trim, Door Shelf   (Replaces: 2195926)			Immediately	$ 23.11
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	2198272		Wire Harness		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	2195952		Bracket, Door Stop (black)		Appelez-nous	-
14	2195950		Bracket, Door Stop (chrome)				$ 5.84
15	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
16	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
18	2203371S		Trim, Door (top)		Appelez-nous	-
19	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
20	2186764S		Trim, Door (hinge Side)		Appelez-nous	-
21	2203365S		Trim, Door (bottom)		Appelez-nous	-
22	2186777S		Trim, Door (dispenser, Top & Bottom)		Appelez-nous	-
23	2203289S		Panel, Upper		Appelez-nous	-
24	2203295		Filler, Panel (upper)		Appelez-nous	-
25	2203291S		Panel, Lower		Appelez-nous	-
26	2203297		Filler, Panel (lower)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
