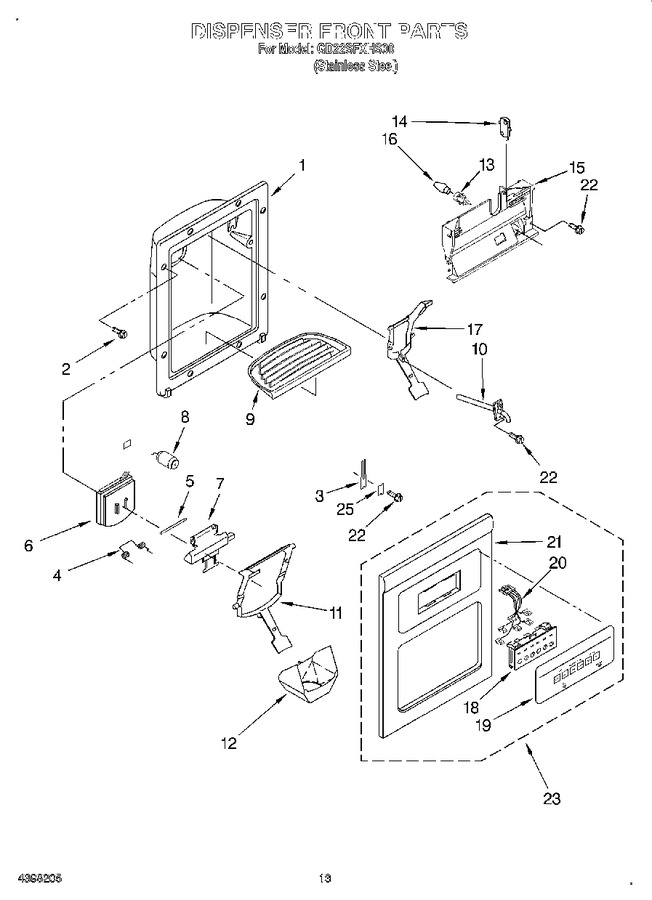

08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Ice Maker


12 - Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Housing, Dispenser (not A Serviceable Part)		Appelez-nous	-
2	WP489069		Screw   (Replaces: 489101)			Immediately	$ 8.40
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 12.36
4	WPW10224328		Spring, Torsion   (Replaces: 2180209)				$ 87.40
5	WP2196195		Pin   (Replaces: 2196195)				$ 15.31
6	2180205		Door, Ice		Appelez-nous	-
7	2180208		Door Mechanism Assembly		Appelez-nous	-
8	2180223		Delay Mechanism		Appelez-nous	-
9	2180243		Grille, Overflow				$ 31.35
10	WP4388152		Water Fitting Assembly (includes Water Tube)   (Replaces: 2180225)				$ 290.25
11	2180258		Lever, Ice Dispenser (black (storm Grey Pad))		Appelez-nous	-
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 30.02
13	2180200		Lamp Holder				$ 103.59
14	WP2162361		Switch (2)   (Replaces: 2162361)			Immediately	$ 28.71
15	WP2180226		Bracket, Control   (Replaces: 2183771)			Immediately	$ 26.97
16	WP22002263		Light Bulb   (Replaces: 3406124)			Immediately	$ 14.85
17	WPW10152859		Lever, Water Dispenser (black (storm Grey Pad))   (Replaces: 2180267)			Immediately	$ 102.82
18	WP2180236		Switch Assembly (also Order No. 19)   (Replaces: 2180236)				$ 288.00
19	2186555B		Overlay, Front Cover		Appelez-nous	-
20	2311650		Wire Assembly   (Replaces: 2196199)				$ 94.16
21	N/A		Front Cover, Housing (not Available, Order No.23)		Appelez-nous	-
22	WP3400906		Screw   (Replaces: 489000)				$ 9.05
23	2186551B		Front Cover Assembly (includes Items 18, 19, 20 & 21)		Appelez-nous	-
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 12.54
