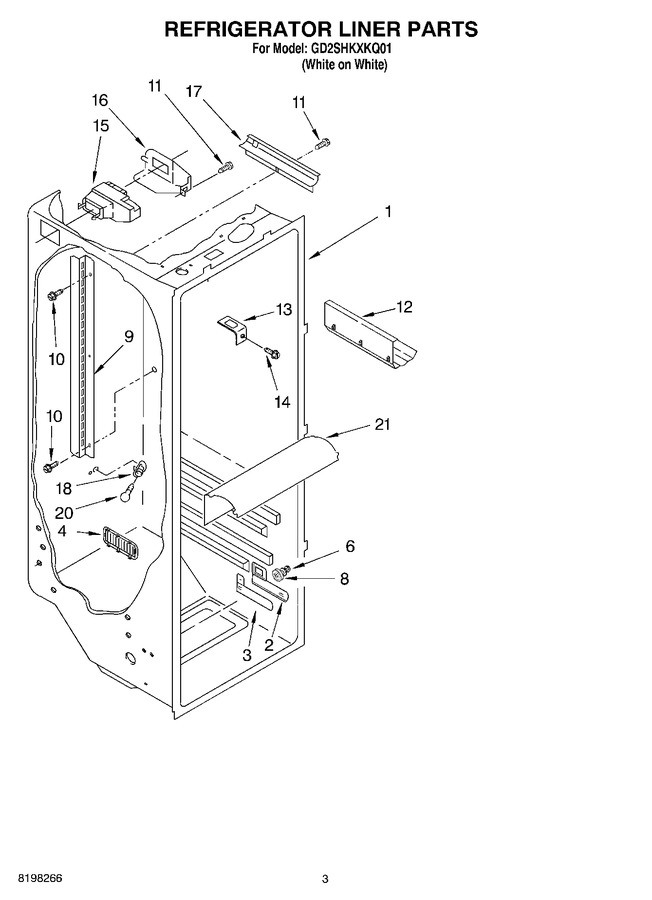

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 95.84 | |||||
| 3 | 2182757 | Slide Meat Pan Control |
|
$ 75.15 | |||||
| 4 | 2182147 | Louver |
|
- | |||||
| 6 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.05 | |||||
| 8 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 14.07 | ||||
| 9 | 2206270 | Shelf Ladder |
|
- | |||||
| 10 | WP488729 | Screw (Replaces: 487539) |
|
Immediately | $ 7.79 | ||||
| 11 | W10759522 | Screw (2) (Replaces: 486298) |
|
$ 8.24 | |||||
| 12 | W10777924 | Rack, Wine & Egg (Replaces: 2179404) |
|
$ 24.78 | |||||
| 13 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 34.38 | |||||
| 14 | WP488488 | Screw (Replaces: 489290) |
|
$ 7.68 | |||||
| 15 | WPW10151374 | Air Diffuser Assembly (Replaces: 2209753) |
|
Immediately | $ 99.78 | ||||
| 16 | 2152019 | Air Diffuser Cover |
|
$ 90.33 | |||||
| 17 | 2150331 | Cover, Conduit |
|
$ 25.62 | |||||
| 18 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 20 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 21 | 2209769 | Light Lens |
|
- |
