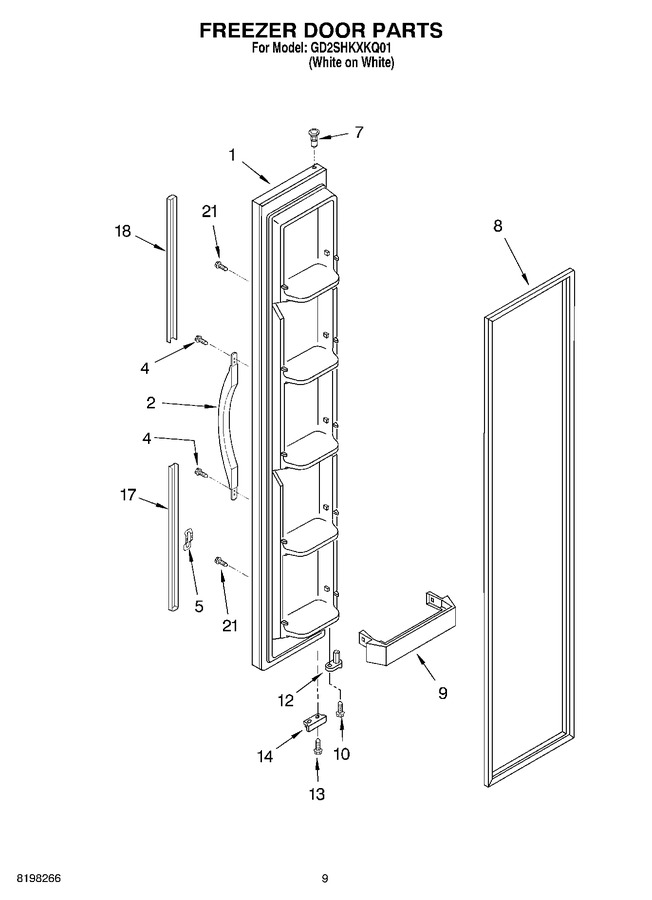

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206725W		Freezer Door (includes Item No.8)		Appelez-nous	-
2	2186649W		Handle, Center				$ 70.49
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
7	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 8.15
8	2159072		Door Gasket, Magnetic (service) (mist Beige)   (Replaces: 2221301)				$ 323.60
9	WP2156021		Trivet, Shelf (5)   (Replaces: 2156021)				$ 66.43
10	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 42.79
17	2194969W		Extension, Bottom				$ 5.51
18	2194971W		Extension, Top				$ 44.85
21	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
