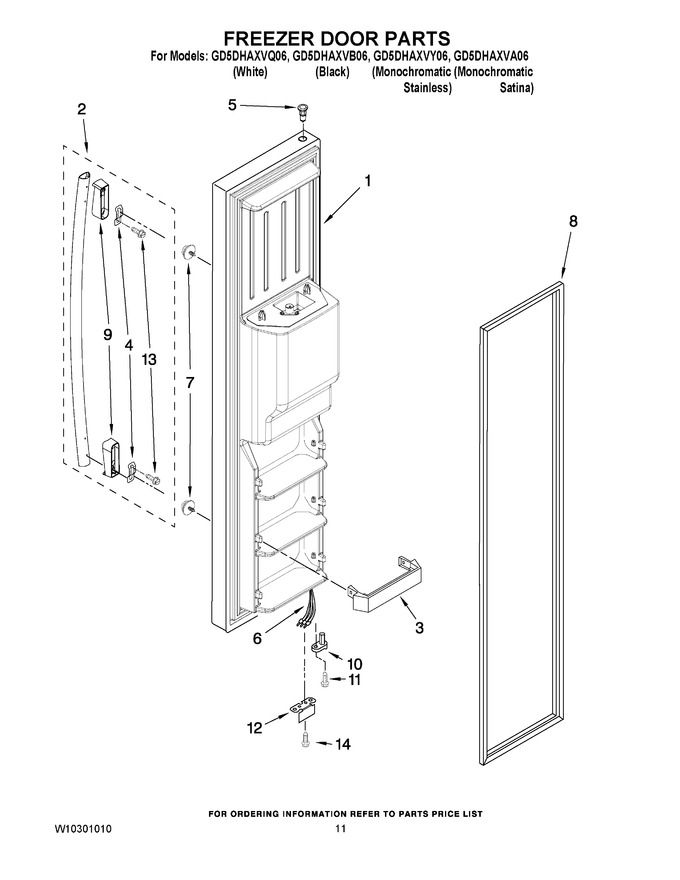

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10143625 | Freezer Door (includes No.8 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | W10143627 | Freezer Door (includes No.8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10143631 | Freezer Door (includes No.8 And Dispenser Front Parts) (mono Stainless) |
|
- | |||||
| 1 | W10143632 | Freezer Door (includes No.8 And Dispenser Front Parts) (mono Satina) |
|
- | |||||
| 2 | W10210942A | Handle, Assy (white) (Replaces: W10210942) |
|
$ 123.36 | |||||
| 2 | W10210942A | Handle, Assy (black) (Replaces: W10210943) |
|
$ 123.36 | |||||
| 2 | WPW10257120 | Handle, Assy (stainless , All) (Replaces: W10257120) |
|
$ 56.86 | |||||
| 3 | WP2171157 | Trivet (3) (Replaces: 2171157) |
|
$ 60.67 | |||||
| 4 | WP2255411 | Clip (Replaces: 2255411) |
|
$ 34.81 | |||||
| 5 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 6 | W10193330 | Wire Assy, Door |
|
$ 71.28 | |||||
| 7 | WPW10288153 | Screw (Replaces: W10129563) |
|
Immediately | $ 8.69 | ||||
| 8 | W10136735 | Door Gasket, Magnetic (apollo Gray) (Replaces: 2326339) |
|
$ 254.84 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 316.66 | |||||
| 8 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221303) |
|
$ 310.19 | |||||
| 9 | W10127814 | Handle, Endcap (black) |
|
- | |||||
| 9 | W10127813 | Handle, Endcap (white) |
|
$ 78.50 | |||||
| 9 | W10152864 | Handle, Endcap (stainless, All) |
|
- | |||||
| 10 | 2323535 | Door Closer, Upper Cam |
|
$ 33.97 | |||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 12 | 2323534B | Bracket, Door Stop (black) |
|
- | |||||
| 12 | 2323534 | Bracket, Door Stop (chrome) |
|
- | |||||
| 13 | W10267047 | Screw (Replaces: W10201588) |
|
$ 12.83 | |||||
| 14 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 |
