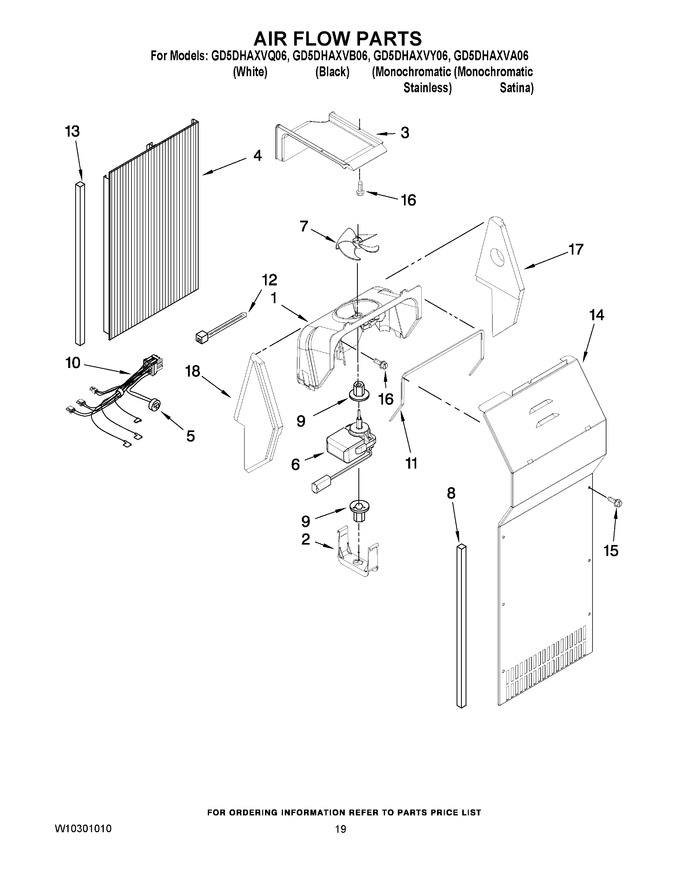

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2182120 | Fan Scroll (Replaces: 2182120) |
|
Immediately | $ 111.97 | ||||
| 2 | 2155590 | Retainer Fan Motor |
|
$ 5.83 | |||||
| 3 | 2313359 | Air Duct, Upper (Replaces: W10272514) |
|
$ 104.97 | |||||
| 4 | 2198580 | Air Duct Freezer |
|
$ 43.10 | |||||
| 5 | WPW10225581 | Bi-metal Defrost (Replaces: W10225581) |
|
Immediately | $ 50.77 | ||||
| 6 | 4389144 | Fan Motor (Replaces: W10131845) |
|
Immediately | $ 78.61 | ||||
| 7 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 8 | WP2304241 | Gasket, Evaporator Cover (2) (Replaces: 2304241) |
|
Immediately | $ 82.80 | ||||
| 9 | WP2176759 | Fan Grommet (2) (Replaces: 2176759) |
|
$ 7.77 | |||||
| 10 | W11084324 | Harness, Fan Evaporator (includes No. 5) (Replaces: W10297482) |
|
$ 105.97 | |||||
| 11 | WP2155789 | Gasket, Fan Scroll (Replaces: 2155789) |
|
$ 7.79 | |||||
| 12 | WPW10339879 | Strap (Replaces: 2172840) |
|
$ 7.90 | |||||
| 13 | 4388500 | Gasket (Replaces: 2203876) |
|
$ 90.39 | |||||
| 14 | 2206314 | Cover, Evaporator (includes No.8) |
|
$ 61.73 | |||||
| 15 | 4389654 | Screw (6) (Replaces: 8281159) |
|
$ 13.89 | |||||
| 16 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 17 | 4388358 | Support, R.s (Replaces: 2203595) |
|
$ 31.16 | |||||
| 18 | 4388358 | Support, L.s (Replaces: 2203596) |
|
$ 31.16 |
