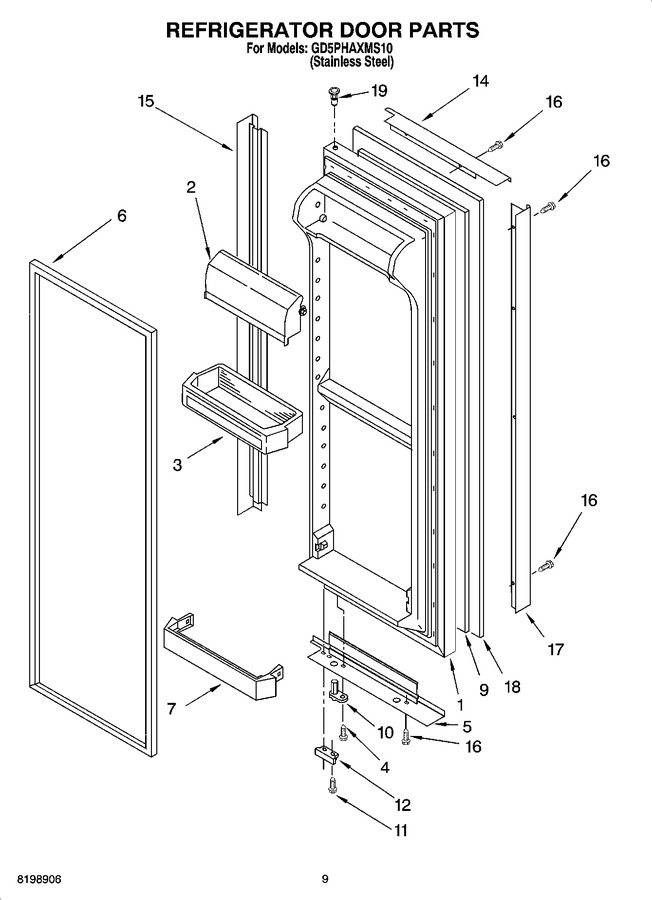

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2219864B		Refrigerator Door (includes Item 6) (black)		Appelez-nous	-
2	WP2256101		Compartment Door   (Replaces: 2256101)			Immediately	$ 85.16
3	2223239		Shelf Bin (3)		Appelez-nous	-
4	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
5	2220437S		Trim, Door Bottom (stainless Steel)		Appelez-nous	-
6	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
7	WP2318736		Trivet   (Replaces: 2223727)				$ 73.28
9	2219803		Filler Board		Appelez-nous	-
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	2206630B		Bracket, Door Stop (black)		Appelez-nous	-
14	2220432S		Trim, Door Top (stainless Steel)		Appelez-nous	-
15	2220430S		Trim, Hinge Side (stainless Steel)		Appelez-nous	-
16	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 7.19
17	2206852S		Handle (stainless Steel)		Appelez-nous	-
18	2206889S		Panel, Door (stainless Steel)		Appelez-nous	-
19	WP2182181		Thimble, Top   (Replaces: 2182180)				$ 7.76
