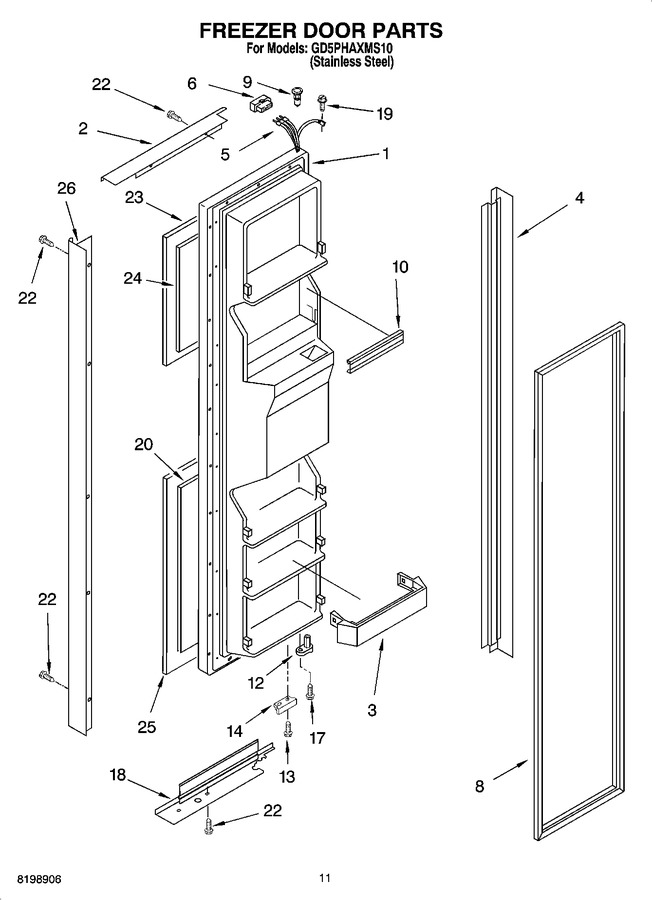

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2261548B | Freezer Door (includes 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 2 | 2220433S | Trim, Door Top (stainless Steel) |
|
- | |||||
| 3 | WP2171157 | Trivet (3) (Replaces: 2171157) |
|
$ 63.70 | |||||
| 4 | 2220428S | Trim, Hinge Side (stainless Steel) |
|
- | |||||
| 5 | 2198619 | Dispenser Harness |
|
- | |||||
| 6 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 24.83 | |||||
| 8 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2221314) |
|
$ 332.49 | |||||
| 9 | WP2182181 | Thimble, Top (Replaces: 2182181) |
|
$ 8.15 | |||||
| 10 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 24.27 | ||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | 2206630B | Bracket, Door Stop (black) |
|
- | |||||
| 17 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 18 | 2220435S | Trim, Door Bottom (stainless Steel) |
|
- | |||||
| 19 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 20 | 2219800 | Filler, Board Lower |
|
- | |||||
| 22 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 23 | 2206887S | Panel, Door Upper (stainless Steel) |
|
- | |||||
| 24 | 2219799 | Filler, Board Upper |
|
- | |||||
| 25 | 2206888S | Panel, Door Lower (stainless Steel) |
|
- | |||||
| 26 | 2206851S | Handle (stainless Steel) |
|
- |
