Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP2198573 Ice Bin   (Replaces: 2198573) In-Stock Immediately $ 266.78

2 2255574 Crusher Bin Appelez-nous -
3 WP2198574 Auger   (Replaces: 2211590) Special Order $ 162.86

4 2257021 Blade, Stirring Special Order $ 193.60

5 WP1119007 Spacer, Flat (6)   (Replaces: 1119007) Special Order $ 14.77

6 2255460 Cover, Crusher Special Order $ 22.88

7 W10278733 Blade, Rotary   (Replaces: 2257024) Special Order $ 91.00

8 WP1119005 Spacer, Step (2)   (Replaces: 1119005) Special Order $ 11.74

9 2257020 Blade, Fixed Special Order $ 59.91

10 W10278732 Blade, Rotary   (Replaces: 2257023) Special Order $ 91.00

11 2198602 Block, Blade Appelez-nous -
12 489229 Roll Pin Special Order $ 48.47

13 W10278731 Blade, Rotary   (Replaces: 2257022) Special Order $ 90.87

14 489235 Washer, Plain Special Order $ 8.05

15 WP2198661 Washer, Coupling   (Replaces: 2198661) Special Order $ 11.45

16 WP2220457 Coupling   (Replaces: 2220457) In-Stock Immediately $ 35.92

17 WP8281164 Screw   (Replaces: 8281164) Special Order $ 11.33

18 WP3400065 Screw   (Replaces: 3400065) In-Stock Immediately $ 8.18

19 WP2315403 Button, Bin   (Replaces: 2255575) Special Order $ 34.41

20 2212371 Latch, Bin Appelez-nous -
21 WP2198608 Spring, Latch   (Replaces: 2198608) Special Order $ 7.55

22 2198671 Screw Special Order $ 10.92

23 WP8281163 Screw   (Replaces: 8281163) In-Stock Immediately $ 10.70

24 2212369 Holder Special Order $ 22.63

25 WP2220458 Coupling, Bottom   (Replaces: 2220458) In-Stock Immediately $ 41.04

26 WP2198628 Seal   (Replaces: 2198628) In-Stock Immediately $ 12.57

27 WP2212370 Washer   (Replaces: 2212370) Special Order $ 25.35

29 W10852956 Spring   (Replaces: 2198607) In-Stock Immediately $ 21.40

30 WP2188917 Drive Shaft   (Replaces: 999536) Special Order $ 105.19

31 2256154 Enclosure, Motor Special Order $ 49.78

32 2188868 Dispenser, Motor Appelez-nous -
33 2212305 Cover Appelez-nous -
35 WP489478 Screw   (Replaces: 489478) Special Order $ 8.18

36 WP2212365 Sleeve, Coupling   (Replaces: 2212365) Special Order $ 31.51

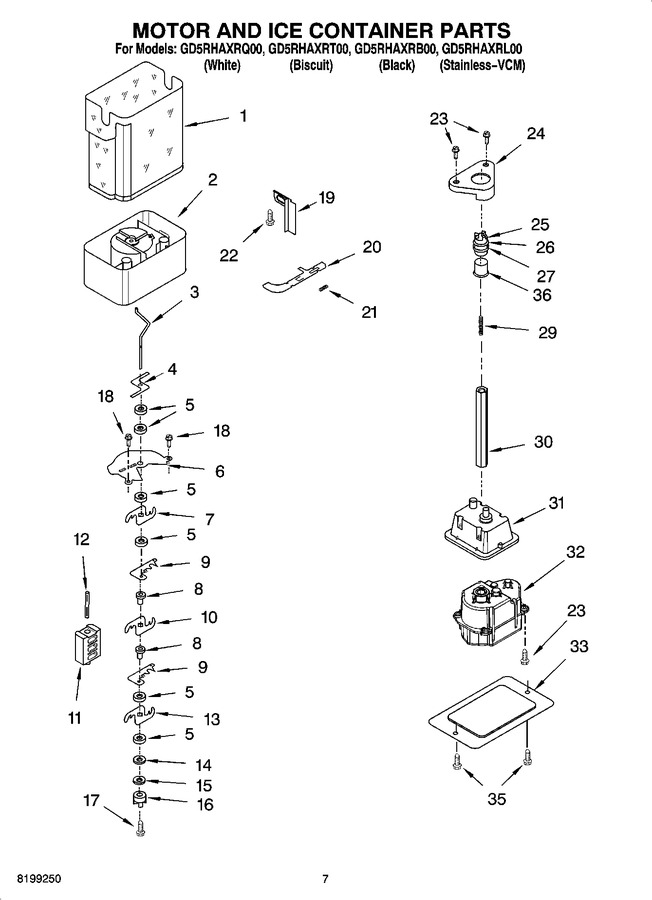

    View Diagram in Separate Window     Print Icon   Print Part List
