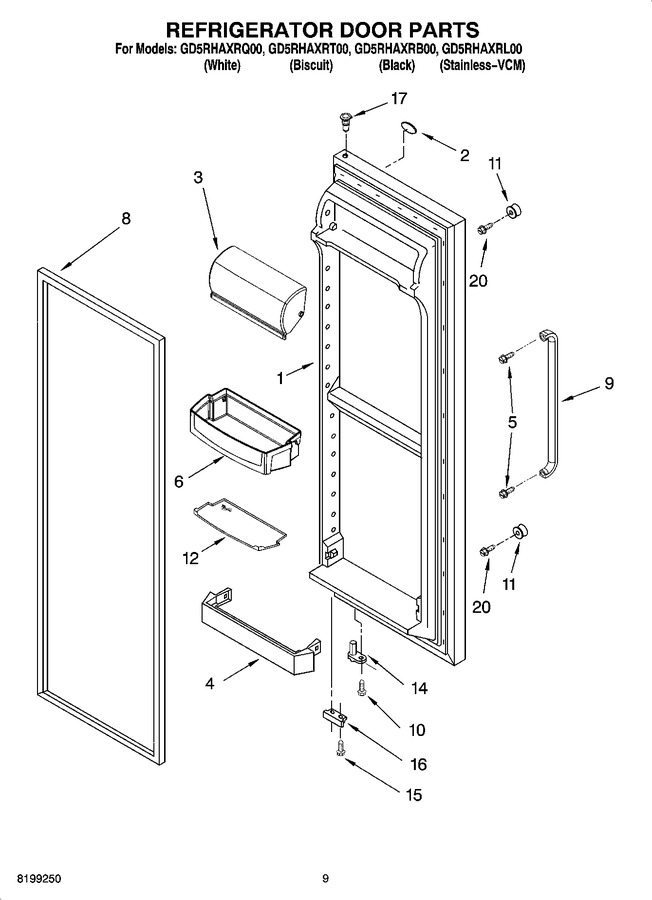

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2308264W | Refrigerator Door (includes Item 8) (white) |
|
- | |||||
| 1 | 2308264T | Refrigerator Door (includes Item 8) (biscuit) |
|
- | |||||
| 1 | 2308264B | Refrigerator Door (includes Item 8) (black) |
|
- | |||||
| 1 | 2308122L | Refrigerator Door (includes Item 8) (stainless-vcm) |
|
- | |||||
| 2 | 2220214 | Nameplate |
|
$ 32.43 | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 4 | WP2318736 | Trivet, Shelf (Replaces: 2223727) |
|
$ 76.94 | |||||
| 5 | 8533976 | Screw |
|
$ 8.35 | |||||
| 6 | 2223239 | Shelf Bin (3) |
|
- | |||||
| 8 | 2159075 | Door Gasket, Magnetic (mist Beige) (Replaces: 2221302) |
|
Immediately | $ 333.00 | ||||
| 8 | 2159083 | Door Gasket, Magnetic (black) (Replaces: 2221313) |
|
$ 251.49 | |||||
| 9 | 2303534S | Handle, Center (stainless) |
|
- | |||||
| 9 | 2303534W | Handle, Center (white) |
|
- | |||||
| 9 | 2303534T | Handle, Center (biscuit) |
|
- | |||||
| 9 | 2303534B | Handle, Center (black) |
|
- | |||||
| 10 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 11 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 12 | 2223464 | Mat, Bin |
|
- | |||||
| 14 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 15 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 16 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 16 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 42.79 | |||||
| 17 | WP2182181 | Thimble-top (for Stainless-vcm Model Only) (Replaces: 2308091) |
|
$ 8.15 | |||||
| 17 | 2308050 | Thimble-top (for White, Biscuit & Black Models Only) |
|
- | |||||
| 20 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 |
