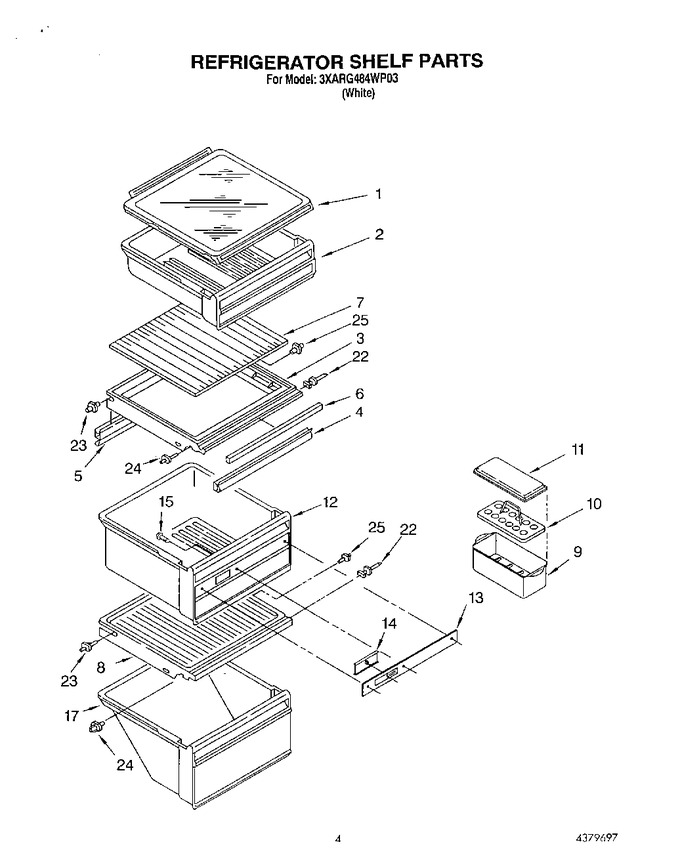

03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2162564		Shelf Assembly, Glass Sliding (3)		Appelez-nous	-
2	1124829		Snack Bin		Appelez-nous	-
3	WP1126289		Cover, Crisper   (Replaces: 2149093)				$ 181.71
4	1115291		Gasket, Crisper (front)		Appelez-nous	-
5	1121385		Gasket, Crisper (rear)		Appelez-nous	-
6	2172714		Trim, Crisper Cover		Appelez-nous	-
7	1114687		Glass, Crisper Cover				$ 88.24
8	WP2148298		Cover, Meat Pan   (Replaces: 2162714)				$ 174.59
9	W10136387A		Egg Bin   (Replaces: 2170522)				$ 18.61
10	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 17.89
11	2164374		Cover		Appelez-nous	-
12	2162711		Pan, Crisper		Appelez-nous	-
13	2162712		Front, Crisper Pan		Appelez-nous	-
14	2148524		Slide, Humidity Control		Appelez-nous	-
15	489162		Screw (3)		Appelez-nous	-
17	2162710		Meat Pan		Appelez-nous	-
22	4388538		Shelf Stud   (Replaces: 2147997)			Immediately	$ 31.34
23	1115290		Shelf Stud				$ 7.61
24	WP2149540		Shelf Stud   (Replaces: 2149540)				$ 10.44
25	4388538		Shelf Stud   (Replaces: 1110718)			Immediately	$ 31.34
