SELECT A DIAGRAM

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Air Flow


06 - Motor And Ice Container


07 - Refrigerator Door


08 - Freezer Door


09 - Dispenser Front


10 - Unit


11 - Icemaker


12 - Control, Lit/optional

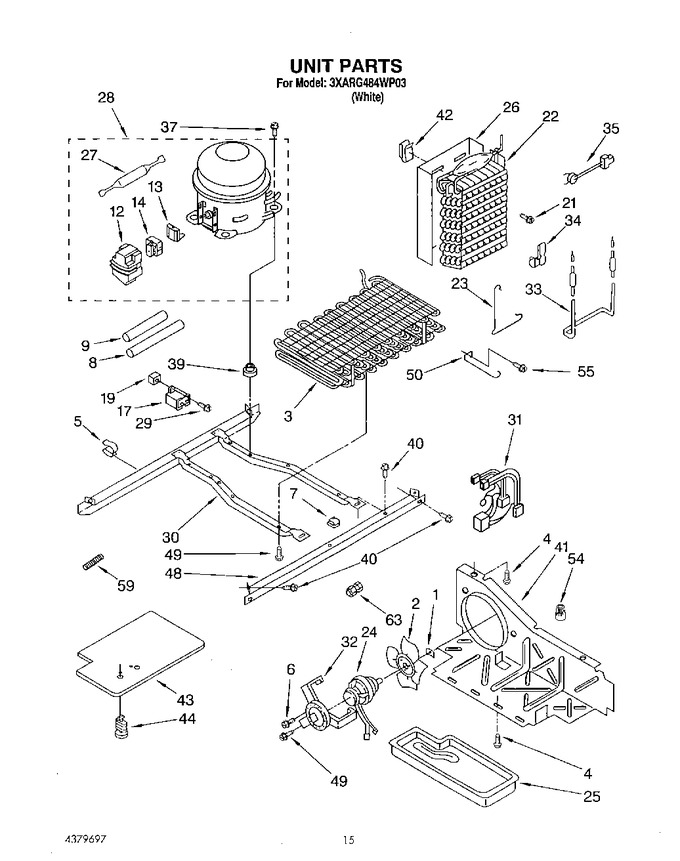

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 8.43
2	1108179		Fan, Blade				$ 49.54
3	2164513		Condenser Assembly		Appelez-nous	-
4	WP489464		Screw   (Replaces: 489337)			Immediately	$ 8.38
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw   (Replaces: 489019)				$ 13.71
7	934011		Clip, Tube (3)		Appelez-nous	-
8	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 21.32
9	WP2158826		Dampener   (Replaces: 2158826)				$ 1.82
12	WP2162358		Cover   (Replaces: 2162358)				$ 95.29
13	WP2169412		Overload   (Replaces: 2169412)				$ 151.70
14	WP2262184		Relay   (Replaces: 2154755)				$ 123.46
17	WP2201147		Running Capacitor   (Replaces: 2154718)				$ 135.42
19	509812		Screw Grommet		Appelez-nous	-
21	WP489478		Screw   (Replaces: 489242)				$ 8.18
22	WP2188822		Evaporator   (Replaces: 2164518)			Immediately	$ 356.84
23	2161324		Clamp		Appelez-nous	-
24	8201703		Motor, Fan   (Replaces: 2162066)				$ 371.70
25	2154114		Tray, Evaporator		Appelez-nous	-
26	2149293		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2164409)			Immediately	$ 57.13
28	876765		Tube Kit			Immediately	$ 90.65
28	W10183407		Compressor (includes Items 12, 13, 14, 17 & 27) (also Order)   (Replaces: 2169449)				$ 435.61
29	W11693756		Screw   (Replaces: 488687)			Immediately	$ 14.76
30	2304903		Unit Mounting Frame   (Replaces: 2160500)				$ 244.68
31	2167065		Unit, Harness		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2162213		Heater, Defrost		Appelez-nous	-
34	2161330		Clip		Appelez-nous	-
35	WPW10225581		Defrost, Bi-metal   (Replaces: 2161331)			Immediately	$ 50.77
37	876811		Screw   (Replaces: 489373)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	WP489427		Screw   (Replaces: 489427)				$ 7.84
41	W10896764		Baffle, Air   (Replaces: 2149128)				$ 101.20
42	2155547		Clip, Heat Shield		Appelez-nous	-
43	2160505		Cover, Unit Bottom		Appelez-nous	-
44	489396		Clip				$ 11.26
48	2149717		Unit Mounting Rail		Appelez-nous	-
49	488624		Screw		Appelez-nous	-
50	1105612		Guard, Fan				$ 42.61
54	850145		Wire Connector		Appelez-nous	-
55	WPW10141625		Screw   (Replaces: 488649)				$ 22.22
59	983659		Spring-tube		Appelez-nous	-
63	876764		Valve, Access(3/16``)			Immediately	$ 95.92
63	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
63	WP4211117		Union   (Replaces: 2150347)				$ 10.46
63	978028		Valve, Access (1/2)		Appelez-nous	-
63	978029		Valve Access (5/8``)				$ 93.85
63	978030		Valve, Access (3/4``)				$ 137.25
63	978026		Valve, Access (5/16``)			Immediately	$ 134.49
63	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64

    View Diagram in Separate Window       Print Part List
