SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts

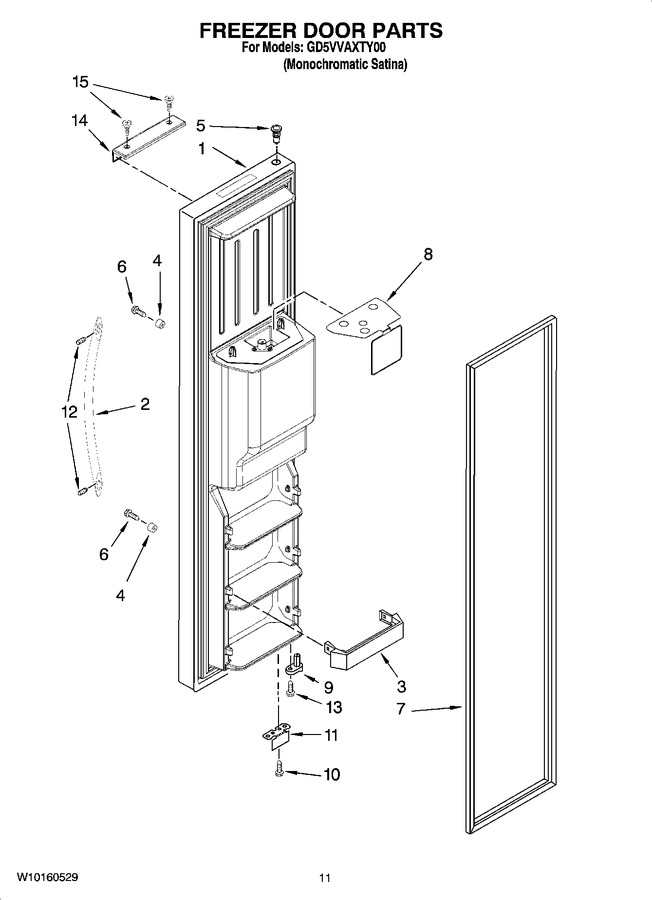

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10135458		Freezer Door (includes 8 And Dispenser Front Parts) (mono Satina)		Appelez-nous	-
2	2254600S		Handle (stainless)				$ 106.71
3	WP2171157		Trivet (3)   (Replaces: 2171157K)				$ 63.70
4	WPW10170540		Clip   (Replaces: 2219698)			Immediately	$ 8.51
5	2308050		Thimble, Top		Appelez-nous	-
6	WP488163		Screw   (Replaces: 488208)				$ 7.92
7	2159074		Door Gasket, Magnetic (mist)   (Replaces: 2221303)				$ 325.70
8	2304895		Safety Barrier		Appelez-nous	-
9	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
10	WP489483		Screw   (Replaces: 489420)				$ 11.41
11	2323534		Bracket, Door Stop (black)		Appelez-nous	-
12	W11366418		Set Screw   (Replaces: W10010140)			Immediately	$ 15.79
13	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
14	W10135454		Cover, Connector		Appelez-nous	-
15	W10146450		Screw		Appelez-nous	-
	2317709		Tube, Water Dispenser		Appelez-nous	-
	2310084		Wire Assembly, Freezer Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
