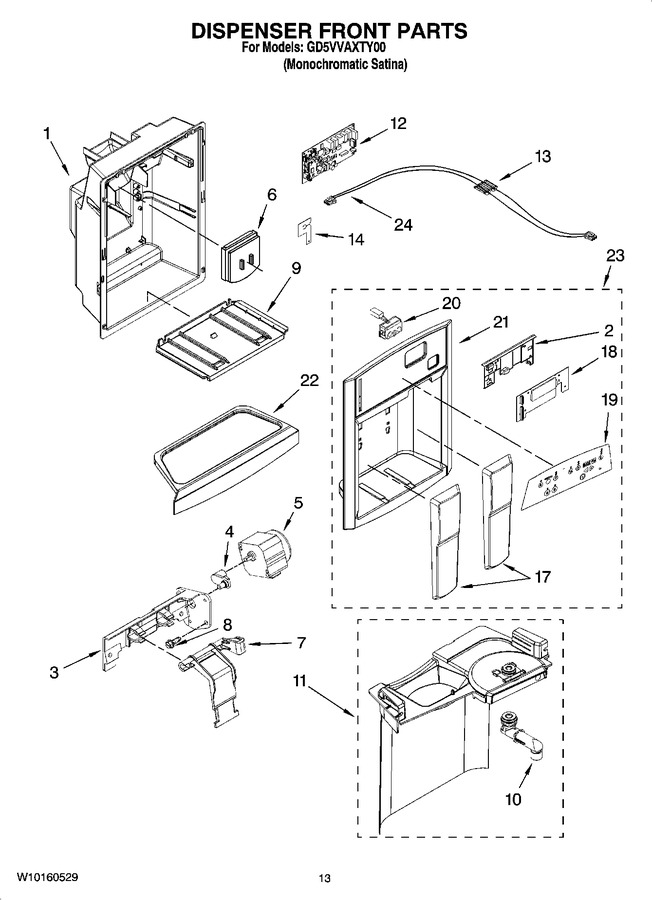

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2305219		Cover, Pc Board				$ 88.56
3	WP2305202		Bracket, Motor   (Replaces: 2305202)				$ 96.76
4	WP2305242		Connector, Door Bracket   (Replaces: 2305242)			Immediately	$ 96.97
5	WPW10184813		Motor, Ice Door   (Replaces: 2305262)			Immediately	$ 103.17
6	WP2305258		Door, Ice   (Replaces: 2305258)				$ 24.85
7	WP2305204		Support, Ice Door   (Replaces: 2305204)				$ 88.22
8	WP4449745		Screw (2)   (Replaces: 4449745)				$ 7.49
9	2305413AP		Grille, Slide (apollo Grey)		Appelez-nous	-
10	WP2305235		Spigot   (Replaces: 2305235)				$ 140.07
11	2305460US		Separator Assembly (universal Silver)		Appelez-nous	-
12	WP2303843		Electronic Control (core)   (Replaces: 2303843)				$ 347.99
13	2308165		Ferrite Bead		Appelez-nous	-
14	2305447		Clip, Wiring		Appelez-nous	-
17	2305247MG		Pad, Ice & Water (mono Satina)		Appelez-nous	-
18	2304170		Cover Assembly, Electronic Control		Appelez-nous	-
20	2317205		Led Assembly		Appelez-nous	-
22	2305408US		Tray, Housing (universal Silver)		Appelez-nous	-
23	2317715US		Front Cover Assembly (includes Items 17, 18, 19, 20 & 21) (universal Silver)		Appelez-nous	-
24	2187814		Wire Assembly, User Interface				$ 35.21
