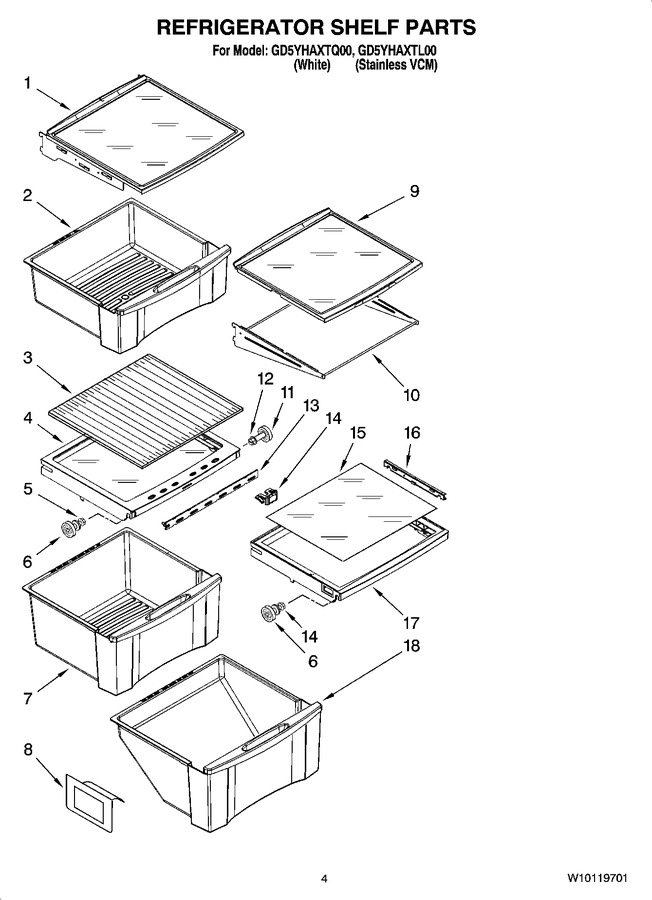

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2223288		Shelf Asm   (Replaces: 2223288)				$ 397.99
2	2223261		Snack Bin Asm		Appelez-nous	-
3	2223591		Glass, Cover				$ 88.38
4	2223592		Cover, Crisper		Appelez-nous	-
5	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.05
6	W11223328		Stud Asm   (Replaces: 2196485)			Immediately	$ 14.07
7	WPW10233488		Crisper Pan Asm   (Replaces: 2223235)				$ 192.04
8	2179350		Deflector				$ 81.80
9	2255160		Shelf, Slide Out		Appelez-nous	-
10	2223517		Frame Asm				$ 83.09
11	WP2196483		Stud Asm   (Replaces: 2196483)				$ 10.35
12	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
13	2223308		Slide, Humidity Control				$ 77.01
14	2223309		Knob, Humidity Control				$ 34.60
15	2223714		Glass, Meat Cover				$ 85.42
16	WP2223320		Slide, Pan   (Replaces: 2223320)			Immediately	$ 25.05
17	WP2223242		Cover, Meat Pan   (Replaces: 2223242)				$ 279.75
18	2223243		Meat Pan Asm		Appelez-nous	-
