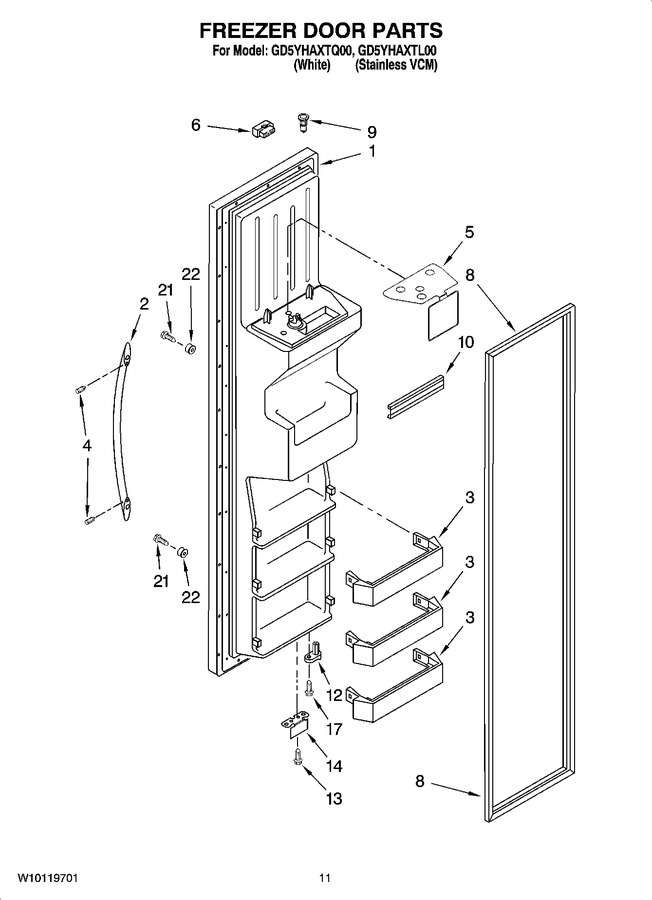

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2326362W		Freezer Door (includes 8 And Dispenser Front Parts) (white)		Appelez-nous	-
1	2326362LG		Freezer Door (includes 8 And Dispenser Front Parts) (stainless-vcm)		Appelez-nous	-
2	WP2254600B		Handle (black)   (Replaces: 2319729B)				$ 208.77
2	WP2254600W		Handle (white)   (Replaces: 2319729W)				$ 235.14
3	WP2171157		Shelf Bin   (Replaces: 2171157K)				$ 60.67
4	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 15.79
5	2304895		Barrier, Safety		Appelez-nous	-
6	WP2154473		Connector   (Replaces: 2154473)				$ 23.65
8	2159074		Door Gasket, Magnetic (mist)   (Replaces: 2221303)				$ 310.19
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 316.66
9	WP2182181		Thimble, Top   (Replaces: 2182181)				$ 7.76
10	WPW10307490		Trim, Door Shelf   (Replaces: 2219982)			Immediately	$ 23.11
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 10.87
14	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
14	WP2206629B		Bracket, Door Stop (white)   (Replaces: 2206629)				$ 40.03
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
21	WP488163		Screw   (Replaces: 488208)				$ 7.54
22	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
